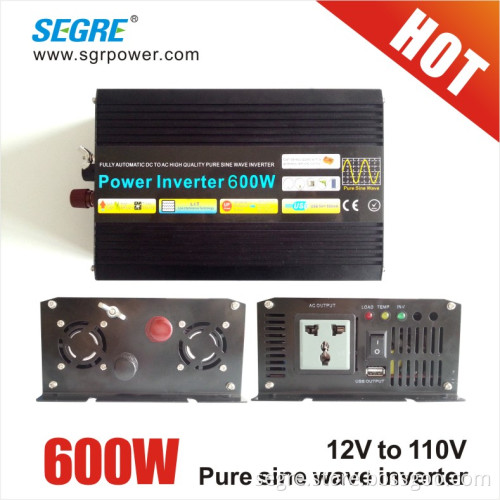

600W Pure sine wave car power inverter with USB 500mA
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Guangdong, China (Mainland) |
---|

Model | SGR-NC6011 | SGR-NC6012 | SGR-NC6021 | SGR-NC6022 | SGR-NC6031 | SGR-NC6032 | SGR-NC6041 | SGR-NC6042 |
Continuous output | 600W | |||||||
Surge Power | 1200W | |||||||
input Voltage | 12V | 12V | 24V | 24V | 36V | 36V | 48V | 48V |
DC Current (typ.) | 60A | 30A | 20A | 15A | ||||
AC Voltage | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V |
Regulation | Vrms ±3% | |||||||
Frequency | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz |
Wave Form | Pure Sine Wave | |||||||
Total Harmonic Distortion | THD < 3% | |||||||
USB Output | DC 5V ± 5% 500mA | |||||||
Low Battery Alarm | 10.5V ± 2% | 21V ± 2% | 31.5V ± 2% | 42V ± 2% | ||||
Battery Voltage | 10V±2% | 20V± 2% | 30V±2% | 40V ±2% | ||||
High Battery | 16V ± 2% | 32V ± 2% | 48V ± 2% | 64V ± 2% | ||||
No load current | 650mA | 350mA | 220mA | 170mA | ||||
Efficiency | 87% | |||||||
Short-circuit | Yes | |||||||
Overload | Yes | |||||||
Reverse polarity protection | Yes | |||||||
Intelligent Design Heat Auto Control | Fan Start : 42°C ± 3 , Fan Stop : 38°C± 3 | |||||||
High Temperature Shut Down : 70°C±3 , Restart Output : 55°C±3 | ||||||||
Dimensions (mm) | 225+25 (D) x 157 (W) x 75 (H) | |||||||
Weight | 2.5kg |
