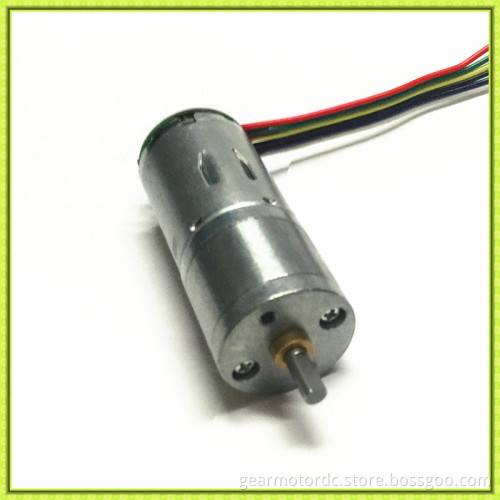

3ppr 25mm gearbox low noise encoder 12v dc motor brushed 5rpm

3-13ppr 25mm gearbox low noise encoder 12v dc motor brushed 5rpm-600rpm   1.Rated Voltage:6-12v
2.Speed: 1-1000RPM
3.Torque: 1-30 kg.cm
4.low speed & high torque   Model,output speed,torque descriptions:

Serial Number	6013	6021	6029	6041	6047	6055	6063	6089	60103
Gearbox L mm	23	23	23	23	23	23	23	23	23
No load speed rpm	461	285	206	146	127	110	95	67	58
Rated speed rpm	369	224	155	110	96	83	71	51	43
rated torque kg.cm	0.29	0.45	0.6	0.8	0.91	1.07	1.13	1.6	1.85
Max Torque kg.cm	1	1	2	2	3	3	3	5	5
Serial Number	60121	60139	06171	60197	60226	60266	60307	60376	60499
Gearbox L mm	27	27	27	27	27	27	27	27	27
No load speed rpm	49	43	35	30	26	22	19	16	12
Rated speed rpm	37	32	26	22	19	16	14	11	8
rated torque kg.cm	2.2	2.5	2.82	3.25	3.72	3.99	4.6	5*	5*
Max Torque kg.cm	5	5	5	7	7	7	8	8	8

    gear motor low rpm drawing:      low voltage dc motor and gear motor Typical Applicatons:     1. Bank System: ATM,   2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine   3. Security: Door Lock, Safebox,   4.  Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer ...   5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment...   6.Robot and Robot Arm   7. Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid...   8. Office Products: Printer, Paper Shredder, Label Machine,   Others,such as bake machine, package machine, warm-light, horse feeders, electric valve.....   Packaging & Shipping  25mm gearbox low noise encoder 12v dc motor brushed 5rpm-600rpm          Gear Motor Reference Photoes:       Company Information      CE and Rohs Certification:     FAQ Q: What kind of motors you can provide? A:we mainly provide dc gear motors,dc worm gear motor, planetary dc gear motor. etc.   Q: If your dc motor/gear motor can be customized? A: Yes, gear motor, dc motor.gearbox,output shaft etc.can be customized.    Q: Before I place sample order, what should I offer? A: Normally we need to know the Nominal Voltage, No-load Speed, On-load Speed,On-load Torque, rotation direction, Shaft diameter and Length Use conditons(duty cycles and load status),or any issues of the motors you ever tested before.   Q: Can I get some samples? And delivery time? A: Sure,generally speaking,delivery time will be 5-10 working days, if customized types the time will be around 20 working days   Q: What's payment terms you can accept? A: for sample order, we accept Paypal,Western Union and T/T. large orders by TT    Q: What is shipping method? A: For samples, generally we use the express, like DHL, FedEx, UPS,TNT etc. For big cargos, it is ok to ship via sea or air cargo, generally we accept EX-WORK FOB, CIF.   Q: Is there a MOQ for your dc/gear motors?  A: Yes. The MOQ is between 200~10,000pcs for different models after motor sample approval.    Q: What is the delivery time for large orders? A.Normal status,delivery time is 25-35 working days, for special customized requirements,we need to confirm further..   Q: Is it possible to visit your factory?   A:Sure.you are welcome, please kindly keep us informed a few days in advance. We need to check our schedule to see if we are available then.     The customized service we provide has helped our worldwide customers solve lots of problems. You can find more information of us at : ShenZhen Wicta Industry Co. Limited. No.251 Ping'An Blvd Fumin Industry Zone Pinghu 518111 Shenzhen China Tel:  0086-755-29369246 Phone:  0086-138 4917 5677 skype: wicta518 Web: www.gearmotordc.com
