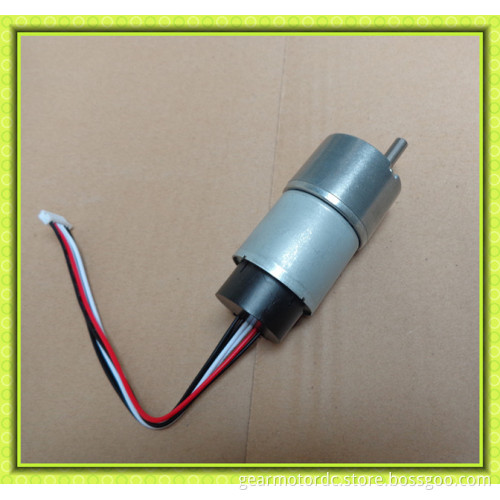

7ppr encoder low noise 6mm shaft high torque 12v dc spur gearbox motor 150rpm
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Reduction ratio | 6 | 10 | 20 | 30 | 60 | 90 | 120 | 180 | 270 | 489 | 540 | 810 |
Gearbox L mm | 22.5 | 22.5 | 22.5 | 22.5 | 25 | 25 | 27 | 27 | 27 | 29 | 29 | 29 |
No load speed rpm | 1000 | 600 | 300 | 200 | 100 | 66 | 50 | 33 | 22 | 12 | 11 | 8 |
Rated speed rpm | 750 | 450 | 225 | 150 | 75 | 50 | 35 | 25 | 15 | 9 | 8 | 6 |
rated torque kg.cm | 0.4 | 0.6 | 1.1 | 1.7 | 3.1 | 4.7 | 5.8 | 8.5 | 10 | 10 | 10 | 10 |
Max Torque kg.cm | 2 | 2 | 4 | 4 | 8 | 8 | 30 | 30 | 30 | 30 | 30 | 30 |
