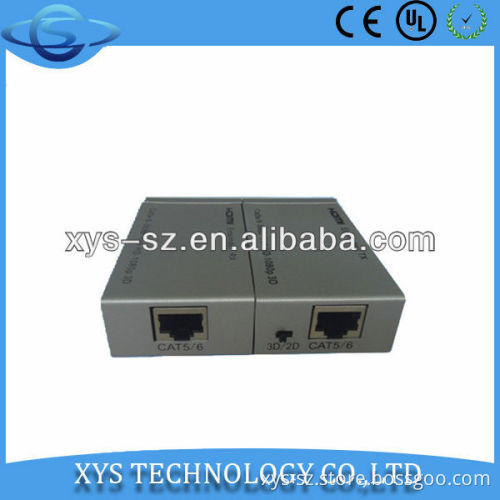

hdmi extender 60m 1080p

Specifications 1.hdmi extender 60m 1080p

2.while using CAT-5E cable as transmission media,

3.Transmission distance reaches up to 30 mete

Dear customer   1.Thank you for purchasing this product. For optimum performance and safety, please read      these instructions carefully before connecting, operating or adjusting      this product. Please keep this manual for future reference.   2.Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to     make your A/V device use more convenient, more comfortable, more productive and more     cost-efficient.   3.The HDT00Extender use double cat-5E or cat-6(recommended) cables up to 60      meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long      distance transmission of high definition is very difficult because HDMI cable is very expensive      and infrequent. The Extender is designed to supply for long distance transmission of high     definition signal.   4.Our devices offer solutions for noise, space and security concerns, data center control,    information distribution, conference room presentation, school and corporate training    environments.     FEATURES l Support 3D l Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i  l Signal transmission :Double cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.                                l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i l Support CEC l Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD l LED indication: when power is supplied or device is working, LED relative to is light. l Support up to 60 metres AWG26 cable length between extender and source & sink device l No loss of quality l Installs in minutes l Need DC5V/2A power supply     The accessories with the machines lists as picture: 1,5V Power Adaptor 2,one pc of Manual                                                   physical connection mouth diagram:                                                                                                                                                               Figure 1.0 Front Panel Showing Picture   With a cat5 or cat6 line will extend the transmitting terminal and receiving end of the Cat on the Cat     SOURCE: input signal interface
SINK: pick up the TV, or other display device
DC 5 v, 5 v DC power supply interface     Operating and Connecting:   1. With a HDMI cable connects the sender of signal source and extender, cable up to 15 meters
2. Using a HDMI cable will signal the receiver connected with extender, cable up to 15 meters
3. Use a line cat5e or cat6 line (recommended) to replace the HDMI cable connect the transmitting terminal and receiving end of the extender, maximum transmission 60 meters
4. Insert the power supply to the transmitters and receivers       SPECIFICATIONS:                                                          HDT003   Length of CAT-6 cable between Rx and TX…..……………….……………..Up to 60 meters HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD Max bandwidth……………………………………………………………………………165MHz Max baud rate……………….…….………………….………….………………………4.95Gbps Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L) Input/Output HDMI cable distance………….……………..≤20m AWG26 HDMI standard cable Max working current………………………………………………………………………...1000mA Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A Operating Temperature range……..…………….………………………………… (-15 to +55°C) Operating Humidity range………………………….….……….5 to 90%RH (No Condensation) Dimension (L x W x H)……………………………….…………………………82x44x22 (mm) Weight…..………………………………………………………..………………………………200g   Notes: Pls use the machine as the instruction listed to keep the long use lifetime of the machine. 1.The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment. 2.All parts will be free from the strong shake, hit, fall. 3.Touching the power adaptor with the wet hands is prohibited. 4.Pls hold the power adaptor head and do not pull the power cord when cut off from the socket. 5.Pls turn the power off when the machine is not used for long time. 6.Pls do not open the cover and do not touch the inside parts. 7.Pls use the original factory power adaptor.                                   Before power on, pls check the connection line carefully. And make sure that all interfaces  are normally connected. The common trouble shooting way shows below:

Serial NO	Trouble Description	Cause and Ways to deal with
1	Non-Power-Connected	1,Check if the power adaptor head is truly and correctly inserted the power socket. 2,Check the power switch if it is in on status.
2	No Picture	1,Pls to make sure that the TV is on and has been connected with the machine. 2,To check if the signal source is on and well connected. 3,Check the system connection quality. 4,Check if the line is all good quality. 5,Check the cable quality
3	Obscure Picture	1,To try again to connect the cable to be free from the unsuccessful connection. 2,HDMI Cable Quality
