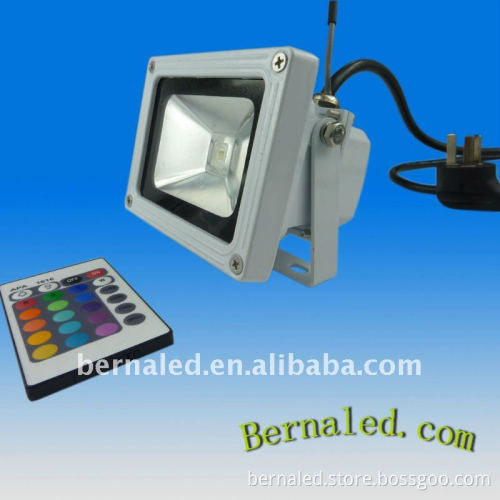

10W RGB LED FLOOD GARDEN LIGHT

Specifications 10W RGB LED FLOOD LIGHT

2 years warranty

Installation height:4m 6m 8m

Dimension:114*86*90

No twinkle

   10W RGB LED FLOOD LAMP  Specifications Widely used in lighting AD boards 10w RGB Led flood LIGHT
CE & RoHS
OEM & ODM provided
Lifespan: >50000h
Warranty: 2 yrs

Input voltage		AC85V-265V		In-kind picture
frequency		50HZ-60HZ
Total harmonic distortion		≤9%
Power factor		0.98
Voltage for the led		DC30-36V
Led Q’TY		1PC
Total power of the led		10W
Total power for the light		10W
LED light effect		90-100LM/W
Initial lumens		Red more than 30lm/w		Picture for the size and the parameters
		Gree more than 50lm/w
		Blue more than 30lm/w
Light effeciency		Above 90%
Average  illuminance		Red	28LUX
		Gree	48LUX
		Blue	70LUX
Light spot		Height 6M	18*10M rectangle
		Height 8M	24*13M rectangle
		Height 10M	32*17M rectangle
Evenness degree		0.6
Related color temperature	R	620-630nm
	G	520-530nm
	B	460-470nm
Color rendering index	W	Ra 78
	WW	Ra 85
Light distribution curve		Symmetric expression/rectangle light spot
Light design		LED+ reflector secondary light distribution
Warming node of the led		≤70°C
Operation temperature		-30°C——+55°C
Storage temperature		-25°C——+65°C
Grade of protection		IP65		Light distribution curve
Life-span of the led		50000H
Connecting wire for the driver	brown	L live line
	blue	N neutral line
	Yellow or yellow-green	G earth line
Color for cover of the light socket		black,and silver for potions
certifications		CE    Rohs
Item NW./GW.		520g
Package size(CM)4PCS		114*86*90

      Features:   Scientific design with quality chips and rational quadric optical light distribution make it stable, safe to use and free from glare. Circuit design: wide voltage range:85-265v,and wide frequency. High efficiency and power factor. Long lifespan: low-carbon led flood light adopt the advanced thermal management technology, with low light decay and long lifespan. Using high quality aluminum alloy casing with an elegant and concise surface appearance. Utilizing high quality electronic parts and components, the actual power factor of our led flood light can reach to 95%. CE & RoHS approved. Excellence after sales service. We provide 2 years warranty for our led flood light.
