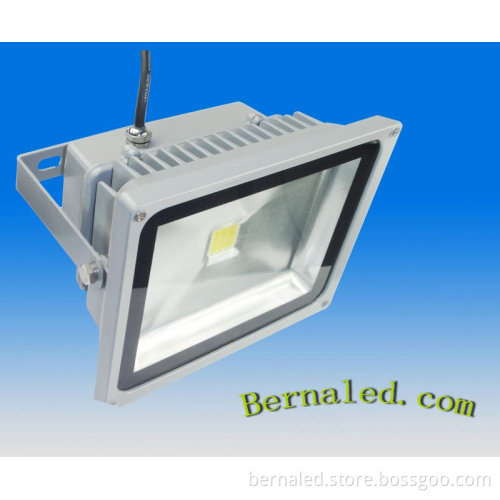

led flood lamp 10w~150W

Get Latest Price

Delivery Time:: 500 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1.Original led flood lamp manufacturer

2.high brightness and energy saving

3.input 110~230VAC/ 24VDC

4.IP65

led flood lamp

Parameter Number

Material's Picture

Model

BN-LF30-X/Flood light

Bitmap

Power 20W Input Voltage 100-240VAC Frequency Range 47-63Hz Input Power ≤22W Power Efficiency ≥90% Power Factor(PF) ≥0.85 Working Voltage 30-36Vdc LED Type 20W module luminous flux ≥1600 Lm LED color Temperature 5500-6500K LED Color Index(CRI) Ra≥70 Beam Angle 150° Lumination (E) of different Height 2M≥210Lux Luminance Distribution
at Different Heights 3M≥110Lux vertical distance vertical illuminace 5M≥70Lux False False Bitmap 2M 3M 5M 210LUX 110LUX 70LUX

Effective Illuminated Area
of Height 1M(H)S=3.4*2.4 M2 2M(H)S=6.8*4.8 M2 3M(H)S=10.6*5.6 M2 Working Temperature -30 ~ 45°C Working Humidity 10%~90% Storage Temperature -30 ~ 80°C Pict

Working Life >30,000 Hrs Housing& Lampshade Aluminum Alloy And Armoured glass The Dimensions(Units: mm) 225(L) x 185(W) x 125(H) Net Weight(g) 2300g IP Rating IP65
