Hospital lighting led 1200x600 ceiling panel and high light uniformity level led panel 60x60

Hospital lighting led 1200x600 ceiling panel and high light uniformity level led panel 60x60 Specifications You are here: Home > Product Categories > Edge-lit LED Panel Light > 1200x600 LED Panel Light   Note: UK Warehouse, speeds up shipping! 1). Stocked in UK. Stocked items can be shipped to European countries from our UK warehouse with lower freight  and shorter delivery time . Ordered items will be despatched within 24 hours after the payment is received. Please note that orders placed on weekends and public holidays will be despatched on the next working day. 2). Items will generally reach UK buyer within 1-2 working days, reach EU buyer within 3-4 working days.
  Hospital lighting led 1200x600 ceiling panel and high light uniformity level led panel 60x60 The Specifications of 60x60 led panel light

Model No	LM-P606036	LM-P606040	LM-P606060	LM-P606072
Power Consumption	36 W	40 W	60 W	72 W
Luminous Flux (Lm)	3240-3600 Lm	3600-4000 Lm	5400-6000 Lm	6480-7200 Lm
LED Qty(pcs)	192 pcs	192 pcs	252 pcs	300 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm/Natural/Cool White
Dimension	595x595x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>90lm/w
CRI	>85
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP54
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years

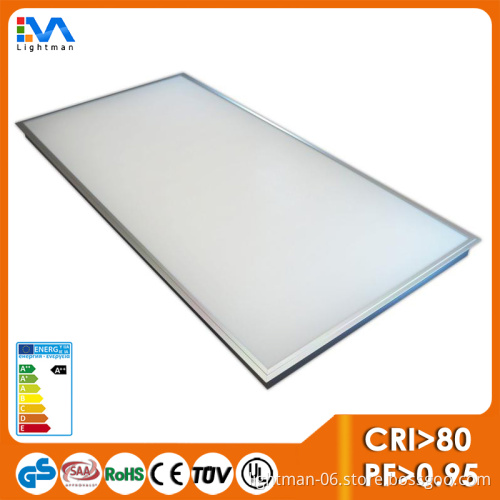

    The Specifications of led 1200x600 ceiling panel light

Model No	LM-P1206060	LM-P1206072	LM-P1206080
Power Consumption	60 W	72 W	80 W
Luminous Flux (Lm)	5400-6000 Lm	6480-7200 Lm	7200-8000 Lm
LED Qty(pcs)	300pcs	408pcs	408pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm/Natural/Cool White
Dimension	1195x595x10mm
Beam Angle (degree)	>120°
CRI	>80
Light Efficiency (lm/w)	>90lm/w
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP44
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years

    What are the advantages of Lightman Lighting LED?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the lighting led more elegant.
• Different sizes of led panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED panel light direct replace T8 and T5 fixtures.
• Lightman led panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel is120°.
• Innovated structure heating design.
• EVA foam protects the light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for led panel light.
• LED panel light are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.   Product Details     Wiring Connection Diagram Product Application
  Installation&Packing   Company Information
