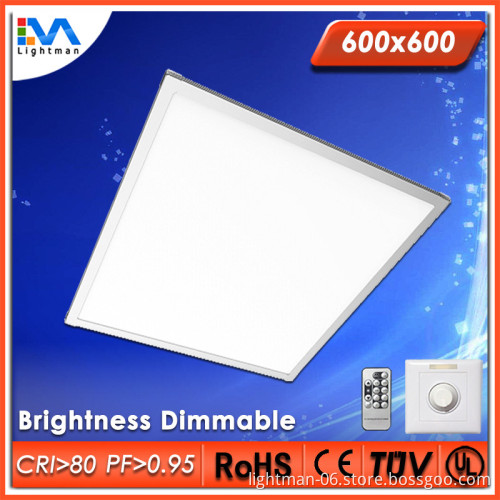

Mitsubishi light guide plate panel 600x600 36w led flat panel lighting dimmable

Mitsubishi light guide plate panel 600x600 36w led flat panel lighting dimmable Specification You are here: Home > Product Categories > Dimmable LED Panel Light > Triac-600x600 LED Panel Light   Note: UK Warehouse, speeds up shipping! 1). Stocked in UK. Stocked items can be shipped to European countries from our UK warehouse with lower freight and shorter delivery time. Ordered items will be despatched within 24 hours after the payment is received. Please note that orders placed on weekends and public holidays will be despatched on the next working day. 2). Items will generally reach UK buyer within 1-2 working days, reach EU buyer within 3-4 working days.
        Mitsubishi light guide plate panel 600x600 36w led flat panel lighting dimmable
      The Specifications of  600x600 Triac Dimmable LED Panel Light:

Model No	LM-PT606036	LM-PT606040	LM-PT606048	LM-PT606050
Power Consumption	36 W	40 W	48 W	50 W
Luminous Flux (Lm)	2880-3240 Lm	3200-3600 Lm	3840-4320 Lm	4320-4560 Lm
LED Qty(pcs)	192 pcs	192 pcs	252 pcs	252 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm White/Pure Whitel/Cool White
Dimension	595x595x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 285V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP44
Operating Temperature	-20°~65°
Dimmable	Triac Dimmable
Life span	50,000hours
Warranty	3 Years

            What are the advantages of Lightman Triac Dimmable LED Flat Panel Light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED panel light for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat panel light directly replace for T8 and T5 fixtures.
• LED panel light is with high efficiency, maximum uniformity by using Mitsubishi Light guide plate.
• 160° wide beam angle for this led panel light.
• Innovated structure heating design.
• EVA foam protects the led panel light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for RGB led flat panel light . • LED flat panel light brightness can be dimmed by Triac way.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.   Product Details Fireproof PC Diffusion Plate and 6063 Aluminum Frame with Better Heat Dissipation:   LED Dimmer:  Wiring Connection Diagram:
  Product Application Installation&Packing   Company Information
  Certifications
