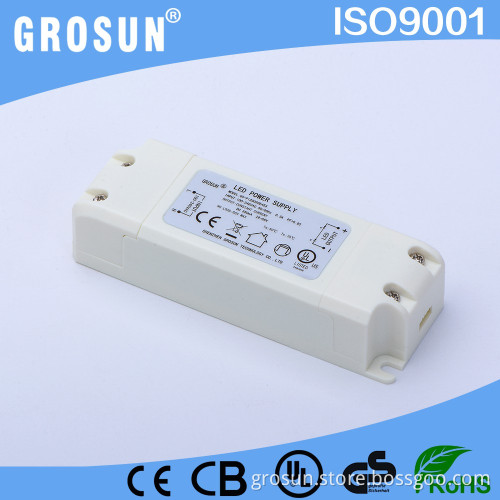

China Supplier ISO9001 Manufactureing Single Output White Housing 350ma Constant Current LED Driver with CE UL Approverd

China Supplier ISO9001 Manufactureing Single Output White Housing  350ma Constant Current LED  Driver with CE UL Approverd Product Description  Delivery Assured, Quality Assured and Price is Competitive Isolated Output Constant Current Output Up to 85% Efficiency and 0.95 Power Factor Active Power Factor Correction All-around Protection: OVP SCP and Open Lamp Protection Plastic Shell, Comply with CE Safety Standards Applications: LED Light.

Electrical Specifications
Input Voltage	100-240Vac
Voltage Range	86-264Vac
Input Frequency	50/60HZ
Power Factor	0.96@22Vac
Input Current	0.5A max.@100Vac, 0.3A max.@220Vac
Efficiency	85%(typ.)@220Vac(Full Load)
Output Current Tolerance	<±3%
Linear Adjustment Rate	<±3%
Max.Output Power	25W
Turn-on Delay Time	<1S@220Vac



Environment Parameters
Operating Temperature	-20~+40℃
Storage Temperature	-20~+80℃
Operating Humidity	10%~90% RH:No Condensation
Storage Humidity	5%~90% RH
MTBF	50000 hours Ta=25 ℃
Cooling Method	Natural Convection

    Notes:   This LED driver is not suitable for appliances which require an input is more than 300 mA , Please kindly check the input required for your appliance/device before the purchase. Using an incorrect driver may damage your appliance/device and the driver itself. Damage to the driver caused by misuse will not be covered under warranty. Product Pictures        Company Information   Company Profile, Established in 2006, is a professional manufacturer for all kinds of power supplies. our company is located in Shenzhen special economic zone. So far we have over 100 product-line staff and 20 technical staff.  our products have passed through CE, RoHS, CCC certifications. Our power products have been exported to South Africa, Taiwan, South American countries as well as domestic markets. Grosun makes what customer desires!   Our Services, Do offer you all-demensional "one-station" purchasing service. Esteem and loyalty help us to go further.   Our Main Products, • Wall mounted type adapter
• Desk-top type adapter
• Charger
• Aluminum shell power
• LED driver power
• Inverter   Which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.              Packaging & Shipping  Export standard hard cardboard with anti-moisture polybag
The customized packaging is acceptable.
3-5 Working days for sample order, 15-25 days for bulk order.      FAQ   1. No worries?
YES, We can help you save cost, beat competitor then earn more profits. We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.
  2. Free sample?
YES, Sampling cost can be returned once bulk order is confirmed.
In some case, we can arrange for free sample if freight is collected.
3. OEM / ODM ?
YES, Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.   4. A factory?
YES, We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.   5. Defective rate?
Quality is our first goal! All of our products have passed strict detection, All our products have passed Four Times' Total Testing procedures before shipment. Normally our defective rate is below 100ppm.
  6. MOQ?
Our MOQ for each model is 500 PCS.
Samples can be sent for your test before order. Contact Information
