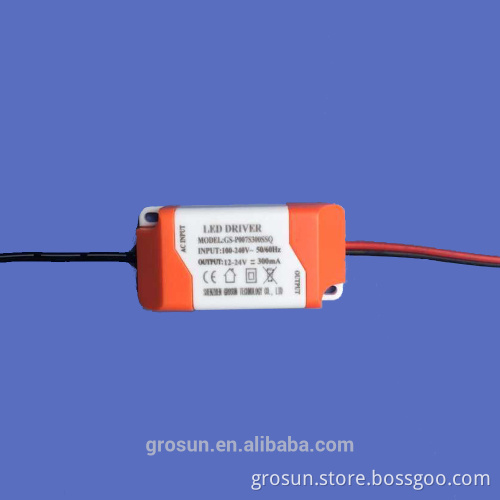

7W CE Standard Constant Current Output LED Lighing Driver / LED power Supply

  7W CE Standard Constant Current Output LED Lighing Driver / LED power Supply   Product Description   Quality assured, delivery assured, no worries and competitive price.   1. Isolated output, 2. Constant current output 3. High efficiency (up to 85%) 4. All-around protection: OVP, SCP and open lamp protection 5. Plastic shell, comply with CE safety standards.   * Applied down light driver.

Electrical Specifications
Input Voltage	100-240V ac
Voltage Range	86-264V ac
Input Frequency	47-63 Hz
Power Factor	0.96@220V ac
Input Current	0.5A max.@100Vac, 0.3A max.@220Vac
Efficiency	85%(typ.)@220Vac(Full Load)
Output Current Tolerance	<±3%
Linear Adjustment Rate	<±3%
Max. Output Power	7W
Turn-on Delay Time	<1S@220Vac

Environment Parameters
Operating Temperature	-20~+40°c
Storage Temperature	-20~+80°c
Operating Humidity	10%~90% RH: NO Condensation
Storage Humidity	5%~90% RH
MTBF	50000 Hours Ta=25°c
Cooling Method	Natural Convection
Dimension(L*W*H)(mm)	72.1*35.0*20.0

Notes:   This led driver is not suitable for appliances which require an input is more than 300mA , Please kindly check the input required for your appliance/device before the purchase.   Using an incorrect adapter may damage your appliance/device and the led driver itself. Damage to the led driver caused by misuse will not be covered under warranty.   Factory Photos Shenzhen Grosun Technology Co., ltd. is a professional manufacturer for all kinds of power supplies. Our products mainly include power adapter, LED power inverter, car power supply and aluminum shell power supply, which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.
    Certifications Our products have all passed International certifications, such as CE, ROHS, FCC, GS, CB and UL. Plus they all meet the energy efficiency level CEC ERP V.   Our Services   1. For you. We can help you save cost, beat competitor then earn more profits.   2. Quality assured. All of our products have passed strict detection, We have many advanced machineries, like Panasonic SMT machines, Panasonic AVK auto component inserters, reflow welding machines, etc. All our products have passed Four Times' Total Testing procedures before shipment.   3. No worries. We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.   4. OEM is available. Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed. FAQ   1. Are you a trading company or a factory? We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.   2. Free sample? Yes, Sampling cost can be returned once bulk order is confirmed. In some case, we can arrange for free sample if freight is collect.   3. What payment methods do you accept? We accept TT, L/C at sight, PayPal.   4. What is your defective rate? Quality is our first goal! Normally our defective rate is below 100ppm.    5. What is your minimum order quantity (MOQ)? Our MOQ for each model is 1000 PCS.  Samples can be sent for your test before order.   Contact Person
