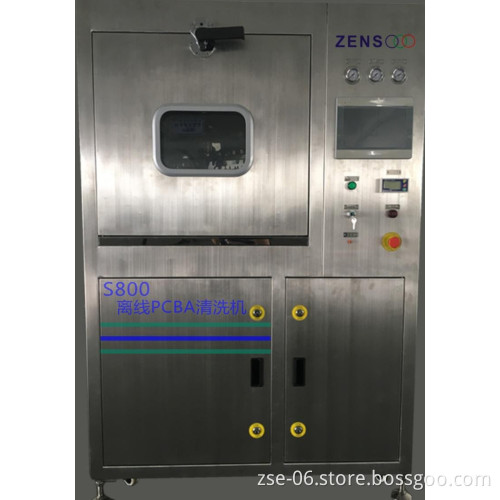

China manufacture ZENS-S800 off-line circuit board washing machine for PCBA cleaning at factory price

China manufacture ZENS-S800 off-line circuit board washing machine for PCBA cleaning at factory price Product show          Product Description  Technical Parameters:

Concentrate tank capacity: 30L
Dilution tank capacity: 70L
Spray tank capacity: 17L-23L
Temperature compensation lumen power: 6KW
The solvent tank heater power: 9KW
Drying heater power: 6KW
Cleaning method: 360 ° rotating spray cleaning
Cleaning time: 5 to 20 minutes (reference)
Rinse time: 1 to 2 minutes
Drying time: 20 to 30 minutes (reference)
Resistivity meter monitoring range: 0 ~ 20MΩ · cm

Liquid heating temperature: room temperature ~ 99 ℃
Drying temperature: room temperature ~ 99 ℃
Chemical liquid recovery and filter: 0.45μm (filtration solder paste, rosin flux and other tiny particles of pollutants)
DI water discharge filter: (filtering contaminants paste, rosin flux and other fine particles) 0.45μm
Intake: 1 inch fast guitar interface
Outlet: 1 inch fast guitar interface
Dilution liquid discharge port: 1 inch fast guitar interface (the existing equipment is 3/4 inch)
Horizontal spray pump: 5.5kw
Exhaust port size: Φ100W) × 30mm (H)
Power / air supply: AC380V 50HZ 65A / 0.45Mpa ~ 0.7Mpa
Machine weight: 400Kg

Product features:
Comprehensive cleaning system: for the product remaining on the surface of organic, inorganic conduct thorough and effective cleaning;

Automatic cleaning mode: a complete cleaning indoor cleaning, rinsing and drying all the processes, small size, compact structure;

Visualization of the whole process: spray chamber equipped with visualization windows, and installed two LED lights, the cleaning process at a glance;

Large cleaning capacity: 610mm (L) * 560mm (W) * 100mm (H) double-layer design, to meet the larger dimensions and higher cleaning capacity;

Most scientific nozzle design: about incremental distribution, improve the cleaning efficiency; the vertical distribution of dislocation type, completely solve the cleaning blind.       Packaging & Shipping  Packing method: 1)Standard  box package for light and small item; 2)Strong wood package for heavy and large equipment;   Shipping way: 1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS.... 2)By sea, for large package and quantity; 3)By car or other ways as customer requested; FAQ 1) This is the first time I use this kind of machine, is it easy to operate?  There is english manual or guide video that show you how to use machine.  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.   2) If machine have any problem after I receive it, how can I do ?  Free parts send to you in machine warranty period.  If the part is less than 0.5KG, we pay the postage.  If it exceeds 0.5KG, you need to pay the postage.   3) MOQ ?  1 set machine, mixed order is also welcomed.   4) How can I buy this machine from you? ( Very easy and flexible !)  A. Consult us about this product on line or by e-mail.  B. Negotiate and confirm the final price , shipping , payment methods and other terms.  C. Send you the proforma invoice and confirm your order.  D. Make the payment according to the method put on proforma invoice.  E. We prepare for your order in terms of the proforma invoice after confirming your full payment.  And 100% quality check before shipping.  F.Send your order by air or by sea.   Company Information   Shenzhen ZENS Electronics Co., Ltd. is mainly engaged in R & D machine vision and electronic products, AOI equipment, electronic test equipment, welding equipment, transmission lines and equipment, industrial automation equipment, non-standard automation equipment, automation non-standard software and hardware.the company has a sound R & D, manufacturing, quality control, sales and good after-sales service system as one of professional automation equipment production company, we can quickly matched market and customer needs. We believe that to bring a better service. We are the Tatung Mexico in Shenzhen Office.


  Our Services 1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
4. Good and professional after-sales service.
