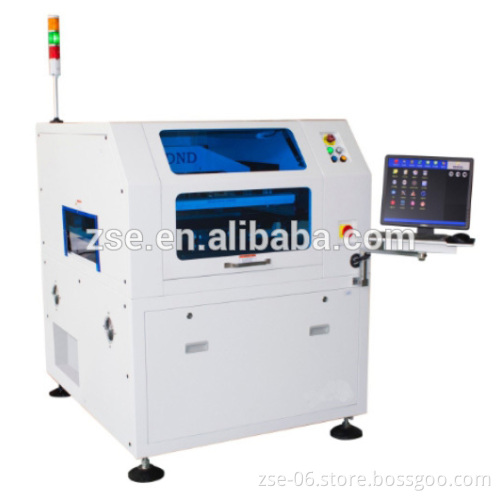

professinonal smt manufacturer SMT High Precision Auto Paste Printer for PCB production

      Item

       Specifications

Repeat Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm ( can provide real-time detection monitoring data (optional)

Printing speed/Cycle Time

<7s (Exclude Printing & Cleaning)

Products Changeover)

<5Min

Screen Stencil Size/Min)

470mm × 370mm

Screen Stencil Size/Max)

737mm × 737mm

Screen Stencil Size/Thickness)

20mm ~ 40mm

PCB printing size/minimum(PCB Size/Min)

50×50mm

PCB printing size/maximum(PCB Size/Max)

450×310mm

PCB printing size/thickness(PCB Size/Thickness)

0.6~6mm

Bending PCB(PCB Warpage Ratio)

<1%(diagonal length of the reference)

Bottom of Board Size)

10mm

Edge of Board Size

3mm

Transport High

900±40mm

Transport Direction

left - right; right - left; left - left; Right - Right

Transport Speed

100-1500mm/sec programmable control

PCB

Board Location

Support System

magnetic thimble / Edge support block / automatic adjustment lifting platform / flexible automatic thimble (optional)

Clamping System

elastic side folder / Z to tableting (Optional, but not recommended)

Print head

direct-coupled motor squeegee pressure control, free to set the size of the pressure

Scraper Speed

10~150mm/sec (CVT function can be set without interruption)

Scraper Pressure

0-15kg program control

Scraper Angle

60°(Standard )/55°/45°

Scraper Type

steel scraper (standard) plastic scraper, other types of scraper to be ordered

Stencil Separation Speed

0.01~10mm/sec programmable control

Cleaning Method

dry cleaning, washing, vacuuming (programmable in any combination)

Table Adjustment Range

X: ±4mm;Y:±6mm;θ:±2°

Image reference point type

standard geometry reference point, pads / openings

Camera System

single-bit digital camera and down on the visual system

Use Air (Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 2.5KW

Machine Dimensions

1400mm(L) x 1200mm(W) x 1450(H)mm(height to remove the lighthouse, see the product external dimensions diagram)

Weight

Approx:1000Kg

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%
