12mm 3.0V Low RPM Metal Micro DC Gear Motor With Planetary Gearbox

12mm 3.0V Low RPM Metal Micro DC Gear Motor With Planetary Gearbox Product Description Rated Voltage: 3V No load speed: 43rpm No load current: 75mA Load speed: 28rpm Rated torque: 351g.cm Gearbox rated torque: 1,500g.cm Gearbox instant torque: 4,500g.cm   We also have the following items:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD012012-64	3.0	145	75	95	260	92	9.0	40.0	1500	4500	64	20.0
ZWMD012012-96	3.0	96	75	64	260	156	15.3		1500	4500	96
ZWMD012012-144	3.0	64	75	42	260	234	23.0		1500	4500	144
ZWMD012012-216	3.0	43	75	28	260	351	34.4		1500	4500	216
ZWMD012012-256	3.0	36	80	24	260	354	34.7	43.8	2000	5000	256	23.8
ZWMD012012-384	3.0	24	80	16	260	531	52.0		2000	5000	384
ZWMD012012-576	3.0	16	80	11	260	796	78.1		2000	5000	576
ZWMD012012-864	3.0	11	80	7	260	1194	117.1		2000	5000	864
ZWMD012012-1296	3.0	7	80	5	260	1791	175.6		2000	5000	1296

above specifications just for reference and customizable according to requirements.   DC Gear Motor 2D Drawing:

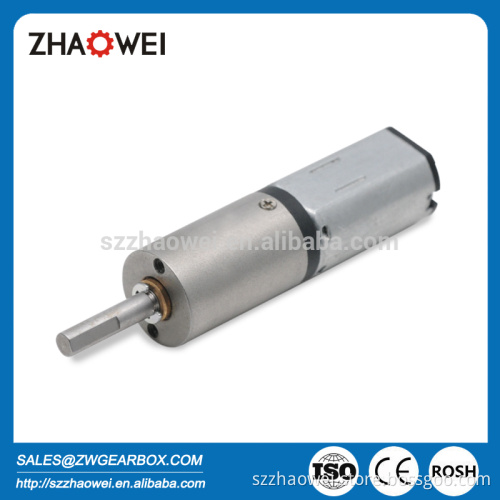

  Product details show   Applications

      Automobile unit, automatic kitchen & toilet, home appliance, instrument & meter, medical appliance, personal care, safety monitor, digital camera, Optical equipment, Medical device, Electronic switch (lock), pumps, robotics, CNC, model aero planes and toy, etc. Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Our Services ODM & OEM Gearbox design and development Related technology support Production&Equipment Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
