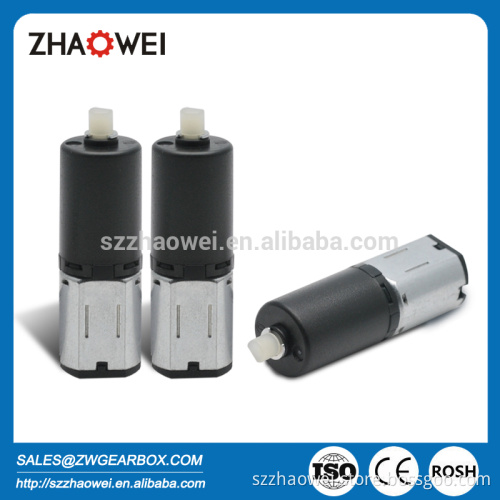

12mm diameter Plastic Shaft Small planetary gearbox with 3V DC motor

12mm diameter Plastic Shaft Small planetary gearbox with 3V DC motor Product Description Can be costomized 820g.cm rated load torque
Best price and quality   We have the following standard items:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD012012-64	3.0	174	90	156	135	54	5.3	32.1	600	1200	64	17.1
ZWPD012012-96	3.0	116	90	104	135	81	7.9		600	1200	96
ZWPD012012-144	3.0	77	90	69	135	122	11.9		600	1200	144
ZWPD012012-216	3.0	52	90	46	135	182	17.9		600	1200	216
ZWPD012012-256	3.0	44	95	39	135	162	15.9	35.9	850	1700	256	20.9
ZWPD012012-384	3.0	29	95	26	135	243	23.8		850	1700	384
ZWPD012012-576	3.0	19	95	17	135	365	35.7		850	1700	576
ZWPD012012-864	3.0	13	95	12	135	547	53.6		850	1700	864
ZWPD012012-1296	3.0	9	95	8	135	820	80.4		850	1700	1296

above specifications just for reference and customizable according to requirements.   2D Drawing
  Product details show  Application:

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.   2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. Our Services ODM & OEM Gearbox design and development Related technology support Company Information Our company is professional planetary gearbox supplier, we are leader company in the field. We have the advanced equipment, a great term of engineers, strong ability of R&D, We are cooperating with famous companies in the world, like BOSCH, Brose, Valeo, Philips, Simple human, Sony, Sanyo, Nidec, Panasonic, Samsung, Johnson Electronic etc. Our products are best-sellers in the world, also can be customized according to client's requirement. Our advantage is Precision, micro, ultra-thin. The most light product can be 0.00013g, the most thinnest can be 0.1mm.   Main products: all series of precise planetary gearbox motor with diameter 3.4mm, 4mm, 6mm, 8mm. 10mm. 12mm. 16mm. 22mm. 24mm. 28mm. 30mm. 40mm etc.   All products can be customized according to client’s requirement, if you have any need, just provide your drawings to us, we have professional engineers to evaluate the drawings and give feedback soon.   We provide the standard packaging or according to client’s requirement, also we provide the fastest delivery date.   all series of precise planetary gearbox motor with diameter 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 24mm, 28mm, 30mm, 40mm, etc, output speed from 5rpm to 1500rpm, ratio range from 3 to 2000, output torque from 1gf.cm to 50kgf.cm.   Reliability Test: Noise test Water-proof test life test impact test drop test storage test salt spary test environmental related substance   Precise product Divices: Machine Name: CNC Manufacturing Accurancy: 0.005mm Type: RODERS Running speed: 43000rpm Machine Name: Wire Cutting Machine  Manufacturing Accurancy: 0.002mm Type: AgieCharmilles ACEertex 2F Wire Diameter: 0.03mm Agie CNC Agie Wire Cutting Machine Makino EDM SUMITOMO & SODICK Injection machines    Precise testing devices: ZEISS CONTURA G2-1 3D measuring instrument Accuracy: 0.003mm Made in  Germany Mituyoto microscope Accurancy: 0.001mm Made in Japan Germany Werth Tester Accuracy: 0.001mm Made in Germany OSAKS Seimitsu CLP-35 Accurancy: 0.0002mm Made in Japan Gear mesh testing instrument Accuracy: 0.002mm Made in Japan.   Production&Equipment   Certifications We Have passed to hold ISO9001, ISO14001 and TS16949. and more... FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
