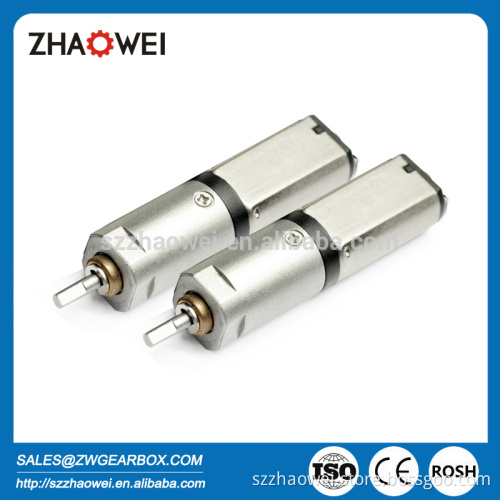

high precision 8mm small planetary gearbox metal gears for Camera

high precision 8mm small planetary gearbox metal gears for Camera Product Description 1)Specification   Model: ZWMD008008-13 Rated Voltage: 4.2v No Load Speed: 1228 rpm No Load Current: 95 mA MAX Rated Load Speed: 934 rpm Rated Load Current: 155 mA MAX Rated Load Torque: 13 gf.cm Max Rated Torque of Gear Box: 400 gf.cm Max Instant Torque of Gear Box: 800 gf.cm Overall Length L: 28.8 mm Gear Box Length L1: 14.3 mm

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD008008-4	4.2	4630	90	3361	155	4	0.4	26.1	250	500	3.6	11.6
ZWMD008008-5	4.2	3125	90	2269	155	6	0.6		250	500	5.3
ZWMD008008-13	4.2	1228	95	934	155	13	1.2	28.8	400	800	13.0	14.3
ZWMD008008-19	4.2	829	95	630	155	19	1.8		400	800	19.2
ZWMD008008-28	4.2	559	95	425	155	27	2.7		400	800	28.4
ZWMD008008-47	4.2	335	95	259	160	40	3.9	31.5	600	1200	46.7	17.0
ZWMD008008-69	4.2	226	95	175	160	56	5.5		600	1200	69.1
ZWMD008008-102	4.2	153	95	118	160	87	8.6		600	1200	102.4
ZWMD008008-152	4.2	103	95	80	160	123	12.1		600	1200	151.7

   above specifications just for reference and customizable according to requirements.    2)2D Drawing     3)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

     4)Quality Control   * Life Test : being continuously working for required period of time, then stop, then repeat * Noise Test : being put at the distance of 1m (or other requirements) to the test equipments to test the noise * Water-proof Test : being put 10mm under the water working for 2 weeks and 100m under the water working    for 12 hours * Salt Spray Test : salt spray can test the products’ resistance to corrosion
* Impact Test : two objects striking each other at high relative speeds
* Storage Test : being stored under normal temperature for 1 or 2 years to test stability
* Environmental Related Substance     Product details show   Packaging & Shipping   1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.     2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation.   Our Services ODM & OEM Gearbox design and development Related technology support Company Information 1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.     2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection.    FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry . Related Products
