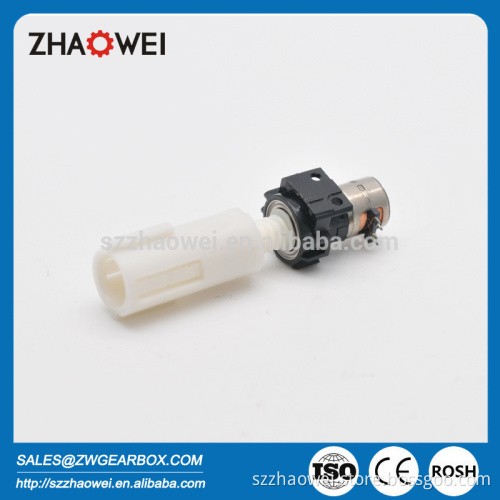

DC 3V 6mm OD Intelligent Anti Myopia Pen Small Stepper Worm Gear Motor

DC 3V 6mm OD Intelligent Anti Myopia Pen Small Stepper Worm Gear Motor Product Description Voltage: 3V No-load speed:47 rpm Load Torque:60g.cm worm gear motor   Functions          Model Number:ZWDZ006006 Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Mini digital, medical, intelligent mechanical Certification:CCC, ROHS, TST16949, SGS Type: small  Stepper gear motor Construction:Permanent Magnet Commutation:Brush Protect Feature:Drip-proof Speed(RPM):47/240/1200rpm Continuous Current(A):5~40mA Output Power:0.07~0.2W Voltage(V):0.2~6VDC Efficiency:IE 1 Motor dia.:6mm Gearbox dia.:6mm Type:Robot mini 6mm planetary gearbox Gear ratio:26/136/700 Total length:16.35/18.7/21.05mm Shaft dia.:2.0mm Noise:45dB(A) Material:Plastic Application:Camera, Mechanical arm, RC, Mini digital products, Medical Customized:Accepted Description:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD006006-6	3.0	6200	45	4669	100	1.6	0.16	14	60	120	5.14	4.7
ZWPD006006-26	3.0	1200	50	907	100	7.2	0.71	16.35	60	120	26.45	7.05
ZWPD006006-136	3.0	235	55	176	100	30	2.94	18.7	60	120	136.02	9.4
ZWPD006006-700	3.0	46	60	40	100	60	5.88	21.05	60	120	700	11.75

above specifications just for reference and customizable according to requirements.
Specifications: Voltage range: 0.2 to 6V DC Rated voltage: 3V DC Start voltage: 1V DC Rotation direction: CW/CCW Reduction ratio: 700/1 Operating temperature range: -10~50°C Storage temperature range: -20~60°C Operating position: All directions of output shaft No load: Idle speed: 47±9rpm Idle current: 25mA max Idle noise: 48dB max On Load: Rated speed: 40±6rpm Rated current: 40mA max Rated torque: 60gf.cm On stall: Start current: 190mA Start torque: 120gf.cm Insulation resistance: 10MΩ min Rotor resistance: 13.5Ω±15% Diameter: 6mm Overall length: 21.05mm Net weight: 1.35g Product details show Company Information 1) Competitive Advantages 18-year experience in manufacturing motor gearbox Experienced Staff: average 7-year experience in R&D , ODM &OEM International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949 Competitive Price High Product Performance: Low noise, High efficiency, Long lifespan Prompt Delivery: 15 working days after payment Small Orders Accepted Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.   2) Main Products   Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm; Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection. Production&Equipment   Our Services ODM & OEM Gearbox design and development Related technology support Packaging & Shipping 1) Packing Details   packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing. Or according to client's requirement.     2) Shipping Details   samples will be shipped within 10 days; batch order leading time according to the actual situation. FAQ 1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need. 3.What is your MOQ? Our MOQ is 2000pcs. But at the beginning of our business, we accept small order. 4. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 5. Do you provide technology support? YES. Our company have strong R&D capability, we can provide technology support if you need. 6.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.  7.How to pay the money? We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc. 8. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 9. Can I come to your company to visit? YES, you can come to our company to visit at anytime, and welcome to visit our company. 10. How do contact us ?  Please send an inquiry .
