uv Coating Line for Cosmetic Bottle Caps

uv Coating Line for Cosmetic Bottle Caps

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	36
Supply Ability:	8
Payment Type:	T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO,CE
Transportation:	Ocean
Port:	Shenzhen

Product Description

UV Coating Spray Painting Line for Cosmetic Bottle Cap:
1. uv spray painting line with PVD vacuum coating machine
2. UV base coat and UV top coat for this spray painting line
3. low pressure spray guns with diaphragm pump for this UV spray painting line
4. flashoff zone, IRo ven and UV curing oven for this UV spray painting line
5. UV painting lines with 10K clean room
6. UV spray painting line with spindle conveyor and PLC control
7. air handling unit attached with spray painting line
8. deionizing booth with clean class 10K for UV painting line
9. spray painting booth with full SS for this UV coating line

10. high output, high quality and low rejection for dustfree automatic UV painting line.

The automatic spray paint programs.

Conveyer

Primer coating line conveyer line

Type: Platform continuous single link

Line speed is 4-10m/min, adjustable 6m/min

Chainlink:Bilateral wheel big roller conveyer chain, material:MS

Line structure:50*50*2mm galvanized square tube.L50x50x3 angle-iron;

Table:SUS-201-1.2MM made from stainless steel ;

Shield:Loading and unloading area.Paint spray booth.UV machine inside use SUS201-1.2mm stainless steel;all cover from top to floor buttom

Track: Adopt 25*50*1.2mm stainless steel flat tube.

Conveyer front-wheel drive system

Power adopt 3HP motor,120 type 1/400 type The speed reducer

3HP;adopts frequency converter to regulate the speed

Sprockets:45# Steel,teeth surfaces with heat treatment

Axis of rotation:45# Steel

Steering Gear

Machine Structure : 50x50 iron square tube.L50x50x3 angle iron

Chain wheel:45# Steel, teeth surfaces with heat treatment

Axis of rotation:45# Steel

Axis of rotation seat: steel plate with thickness of 10mm

Stretching Device

Type: Hung heavy type

Machine Structure :8# channel iron,50x50 iron square tube

Chain wheel:45# Steel, teeth surfaces with heat treatment

Axis of rotation:45# Steel

Axis of rotation seat: steel plate with thickness of 10mm

Foundation : steel plate with thickness of 12mm .

Spindle Rotation Device

Site: Paint spray booth including 4 sets, dust free booth with 2 sets, inside of UV machine with 4 sets

1 set in flame treatment booth and PP booth with 4sets

Type: Rubbing Rotating Type

Power: 0.5HP 1:20 gear speed-down motor

speed-down adjustment: transducer model:IDV4-0.5HP4T;

Transmission Wheel: 3".4" belt wheel

Stretching wheel:A3 Steel

Foundation : steel plate with thickness of 12mm ;

Driving Belt: non-slip v-belt.

One time spindle

Bottom cover: aluminum circle, exterior knurling, set precision bearing;

Pole: φ12 light circle, A3 steel, galvanized surface;

Spindle distance:38.1mm

Note: the second fixture shall be undertaken by the customer.

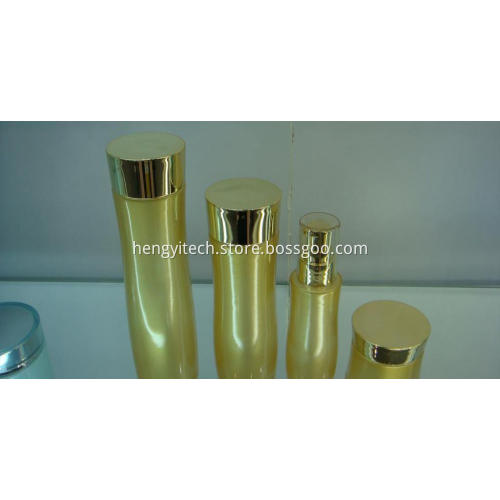

mirror cosmetic caps cosmetic glass bottle

PVD vacuum coating machine autoamtic spray painting line loading
