New Design 5 axis reciprocating spray painting machine only need install one spray painting guns,the gun  head can adjust 360 degree,when we are spray one plan is ok.the machine can take products rotation,it is keep one plan have good painting effect,When the product thickness is large,the gun head can adjust and spray products thickness.

the machine by PLC + TOUCH SCREE CONTROL.You can write program.

The reciprocating spray production line process is generally divided into: upper part, conveying, dust removal, spraying, leveling, drying, cooling, and lower parts. The number of reciprocating sprayers determines the number of spray guns. The spray width and transport speed are generally determined according to the size of the product to be sprayed, the output, etc. The specifications of the reciprocating sprayer production line required for different specifications of the workpiece are different, so Reciprocating sprayers are generally non-standard custom.

Main Features

1) Online is spray paint, high efficiency and stable quality.
2) Fully digital computer operation, can store up to 30 sets of process recipes, and humanized graphic display interface.
3) Spraying and debugging is very simple. The general workpiece debugging is completed in 15 minutes. The programming is based on a certain surface of the workpiece as a whole program segment. Setting the starting point, focus and speed can complete a free painting, avoiding the cumbersome procedures in the past. List.
4) The atomizing spray width and paint of the spray gun can be controlled by PLC remotely.
5) Free paint master, high quality and stable product quality.

Main Features

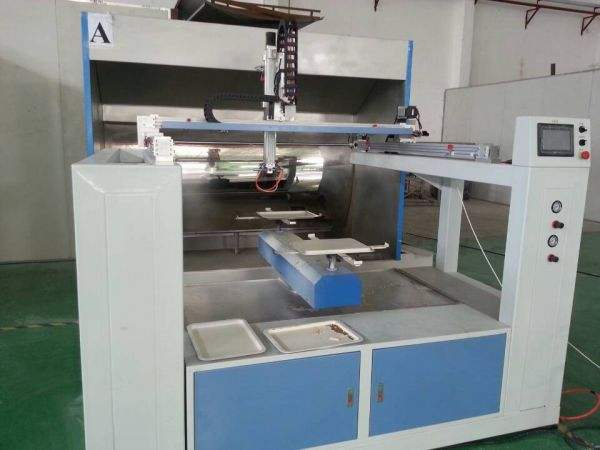

Name:  Flat reciprocating painting machine
Brand: HENGYIJIA
Original: China
The reciprocating spraying production line has the advantages of uniform coating, good painting effect, high spraying production efficiency, compact design, simple operation, convenient maintenance, no dust pollution, stable spraying operation, safe and reliable, low noise and small vibration. The reciprocating sprayer production line has high quality reliability, good operation and convenience, safety and reliability, convenient maintenance and continuous work.

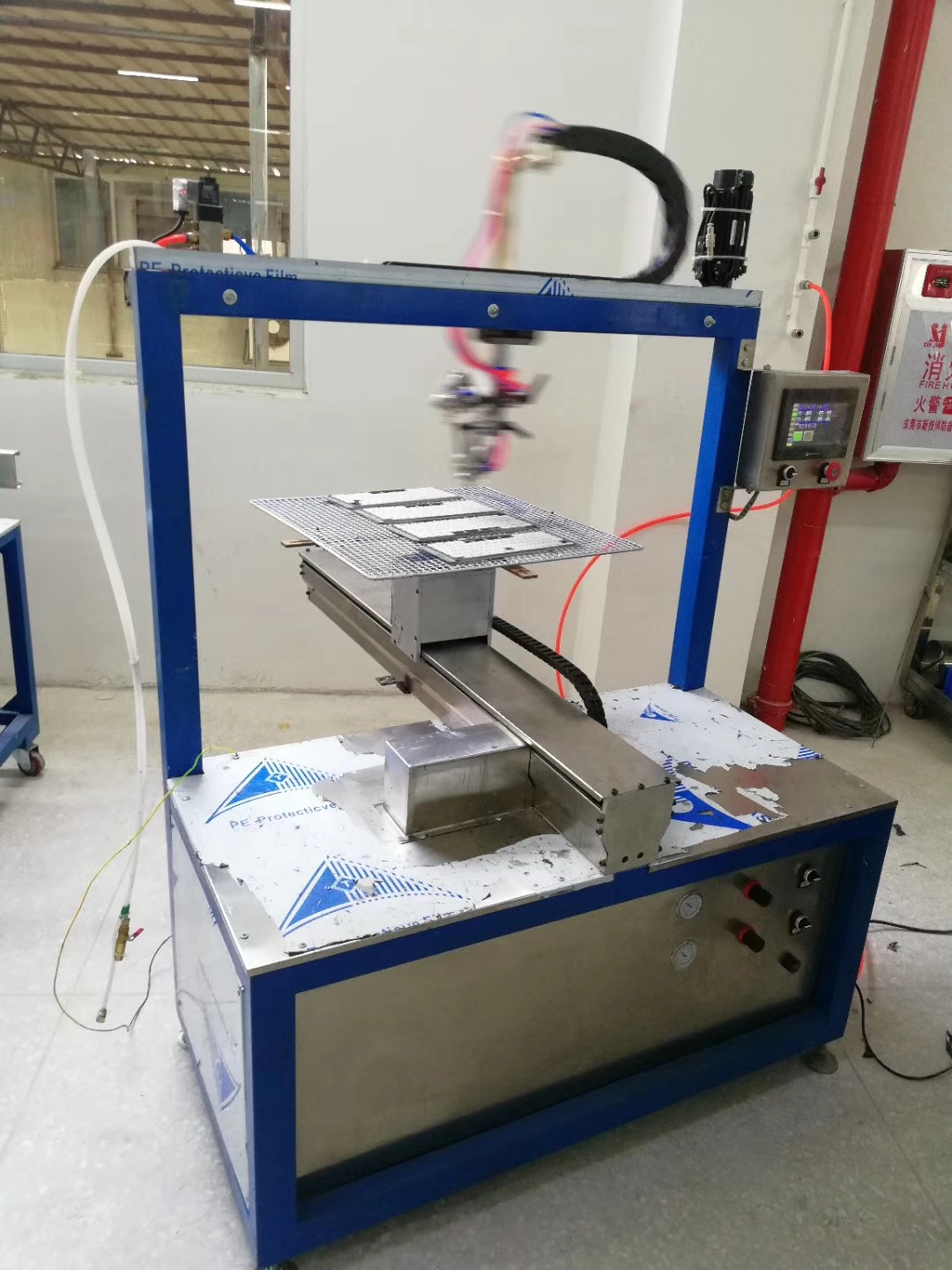

Name: double head rotation painting machine
Brand: HENGYIJIA
Original: China
Double head and rotation painting machine can save worker people,Only one people enough small order,One worker loading&Unloading products and remove product to flat drying oven to oven.
