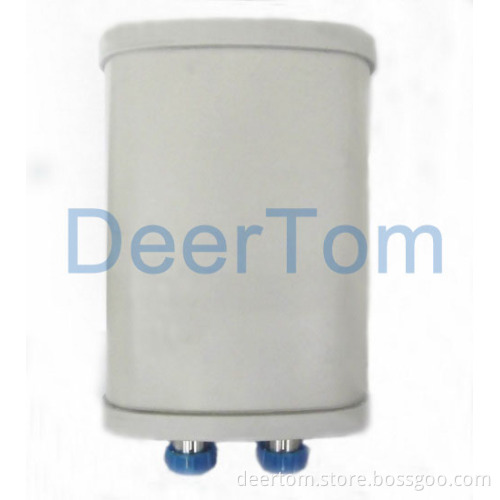

1710-1880MHz 1800MHz Dual Polarization MIMO Sector Sectorial Panel Antenna 12dBi Base Station Antenna
- Payment Type:
- T/T, Western Union, paypal
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T,Western Union,paypal |
| Transportation: | Ocean,Land,Air |
| ELECTRICAL | |
| Model | DT-SPA1710-1880-12*2-120 |
| Frequency Range | 1710-1880MHz |
| Gain | 12*2dBi |
| Beamwidth | H: 120° , E: 15° |
| VSWR | ≤1.5 |
| F/B Ratio | ≥25dB |
| Polarization | Vertical and Horizontal or ±45° |
| Max Power | 100W |
| Nominal Impedance | 50Ω |
| Lightning Protection | DC Ground |
| MECHANICAL | |
| Connector | 7/16DIN Female or customized |
| Antenna Dimension | 550*165*90mm |
| Weight | 4kg |
| Radome Material | ABS |
| Rated Wind Velocity | 60m/s |
| Pole Diameter | Ф33~55mm |
| Working Temperature | -40~60℃ |
