3.5 inch industrial Embedded industrial Motherboard , i7 /
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

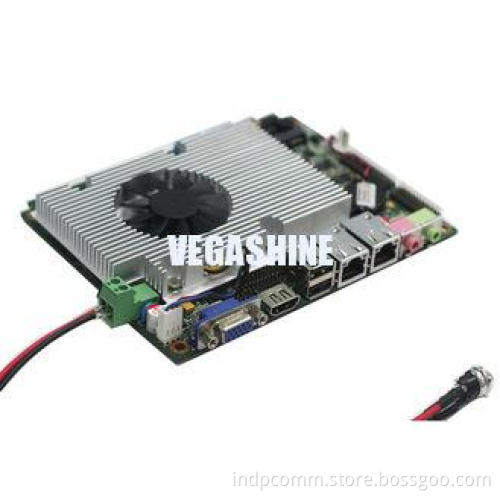

Onboard Intel i7 / i5 / i3 CPU 3.5 inch EPIC industrial embedded Motherboard 6 COM / 8 USB 2.0 , dual gigabit LAN for Car PC , ATM , AD Player motherboard
Quick detail
- Onboard Intel Socket G2 Mobile Sandy/Ivy Bridge i7/i5/i3 / default I3-2310M (3M Cache, 2.10 GHz)
- Intel QM67/QM77 Chipset
- Support 1*DDR3 1066/1333/1600MHz SO-DIMM,up to 4GB
- Support VGA/HDMI/LVDS
- 1 * MINI PCI E
- 1* MINI SATA
- 2 * SATA
- Realte Alc662 hd Audio Code with 6-Channel
- 2* Realtek RTL8111EL LAN
- 8* USB 2.0
- 6*COM header(COM3 for RS-232/422/485)
- 1*GPIO
- Mini ITX Form Factor(117mm * 155mm)
Appliance
- ATM / AD Player
- Car pc
- ultrathin AIO machine
- Monitoring System
- HTPC;VOD; IPC; POS etc.
Specifications
|
CPU |
Intel Socket G2 Mobile Sandy/Ivy Bridge i7/i5/i3 / default I3-2310M (3M Cache, 2.10 GHz) |
|
|
Chipset |
Intel QM67/QM77 Chipset |
|
|
Memory |
DDR3 1066/1333/1600MHz SO-DIMM |
|
|
Expansion |
1 * MINI PCI E 1* MINI SATA |
|
|
Slots |
1 * SIM card |
|
|
Storage |
2 * SATA |
|
|
Audio |
Realte Alc662 hd Audio Code with 6-Channel |
|
|
Ethernet LAN |
2* Realtek RTL8111EL |
|
|
USB |
Embedded 6* USB 2.0/1.1 |
|
|
Features |
Support CPU Smart FAN DC FAN |
|
|
LVDS |
Onboard 24-bit Dual channel LVDS connector |
|
|
Rear Panel I/O |
2 * USB 2.0/1.1 ports |
|
|
1 * DC 12V connector |
||
|
2 * RJ45 port |
||
|
1 * audio I/O port 1* power amplifier |
||
|
1 * VGA |
||
|
Internal I/O |
6*USB 2.0 ports |
|
|
CPU/SYS Chassis fan connectors |
||
|
2*2-pin ATX Power connector |
||
|
6*COM header(COM3 for RS-232/422/485) |
||
|
1*AUDIO -IN header |
||
|
1*GPIO 1*VGA2 1*HDMI2 |
||
|
BIOS |
AMI EMI 32MB SMT/DIP-SPI Flash ROM |
|
|
Functional |
ATM Automation Medical Equipment Security Networking POS Car pc. One computer, Advertising machine |
|
|
|
||
|
General Application ,Transportation, Financial Application |
||
|
Temperature |
Operating within 0~60 centigrade |
|
|
Storage within -20~85 centigrade |
||
|
Form Factor |
Mini ITX Form Factor(117mm x 155mm) |
