Intel G31 Flex-ATX 2 ISA Motherboard With 5 PCI , 2 COM
  • Intel G31 Flex-ATX 2 ISA Motherboard With 5 PCI , 2 COM
Intel G31 Flex-ATX 2 ISA Motherboard With 5 PCI , 2 COM

Intel G31 Flex-ATX 2 ISA Motherboard With 5 PCI , 2 COM

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong,China
Product Description
Product Description

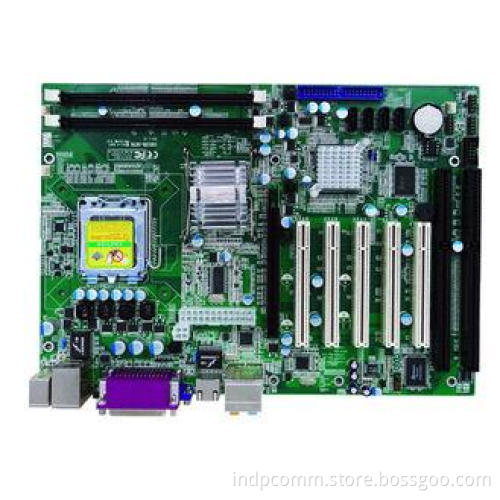

Intel® G31 ISA slot motherboard , 2 ISA , 5 PCI slots , 2 COM , Flex-ATX industrial mainboard for ISA computer / server

Quick details

  • Support Socket775 FSB 533/800/1066 CPU
  • Intel G31 + ICH7 Chipsets
  • Onboard 2*RTL8111C 10/100/1000 Dual LAN
  • 2*ISA Slots
  • 5* PCI slot
  • 2*COM ports
  • DDRII 533/667/800 SDRAM up to 4GB
  • Flex-ATX Motherboard 305 mm (L) ×217.8 mm (W) 4 Layers

Specifications

CPU

• Support FSB 533/800/1066 CPU

• Support Intel Pentium HT(Hyper Threading Technology)CPU

• Support Intel Conroe Socket775 CPU

• Support Intel Conroe-L Socket775 CPU

• Support Intel Pentium D Socket775 CPU

• Support Intel Pentium 4 Socket775 CPU

• Support Intel Celeron D Socket775 CPU

Chipset

• North Bridge Intel G31 chipset

• South Bridge: ICH7chipset

Main Memory

•Dual channel DDRII configuration consist of two DDRII 240 pin sockets

• Support DDRII 533/667/800 SDRAM up to 4GB

VGA

• Integrated Graphics controller in G31 GMCH

• Integrated Intel Graphics Media Accelerator 3100

• One VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency up to 224MB display memory.

Ethernet

• Onboard two RTL8111C 10/100/1000Base-T Ethernet controllers

• Full-Duplex supported

IDE SATA

• One enhanced PCI IDE channels which support up to 2 IDE devices

• Four SATA devices

• Support ATA-100, data transfer rate up to 100MB/sec

PCI-E PCI ISA AUDIO COM &LPT

• Support One PCI-E X16 devices

• Support five PCI devices

• Support 2* ISA devices

• Support 7.1 HDAudio

• Support 2*COM

• Support one LPT

System BIOS

• Phoenix-Award BIOS with 8MB Firmware Hub

• Built-in Trend Chipaway Anti-virus Program

•ACPI/PnP supported

I/O Output

• Two COM port & one Printer port

• One DB-15 VGA port

• PS/2 mouse and keyboard connectors

• Double Deck downstream USB 2.0 ports

• Two RJ-45 LAN ports

Expansion Slots

• 5* PCI slot

• 2*ISA slot

Form Factor

• Flex-ATX @ 305 mm (L) ×217.8 mm (W) 4 Layers

Operating Temperature

0 to 65 celsius degree

Storage Temperature

-20 to 80 Celsius degree

Relative Humidity

10% to 90% ( non-self solidifying)
