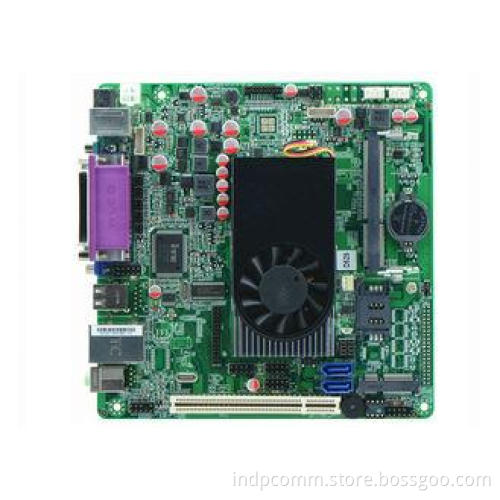

Dual Core Atom D525 Processor Mini ITX Motherboard For POS

CPU

Onboard Intel® Atom D525 Processor Dual core 1.80G

Chipset

Intel® NM70 Chipset

Memory

1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB

Graphics

Intel® GMA3150 Graphics

support VGA/LVDS synchronous/asynchronous display LVDS supports single 18bit

Expansion Slots

1* PCI

1* Mini-PCIE (support WIFI/3G/SSD, jumper control interface swapping)

LAN

1* RTL8105E 10/100Mbps Ethernet, Support Wake-on-LAN and PXE function

Storage

2*SATAII (SATA2 SSD with a second election)

Audio

Integrated Realtek HD ALC662 for 6-Channel output

Support MIC/Line-out/Line-in

Rear I/O

1* 12V DC_JACK input

1* PS/2

1* LPT

1* COM

1* VGA

1* RJ_45 LAN

4* USB 2.0

1* AUDIO I/O (MIC and Line-out)

Internal I/O

1* LVDS 2*10pin

1* JVGA1 2*5pin

4* COM, the 9th pin supports +5V/+12V charged function

1* PS/2

4* USB 2.0

1* AUDIO pin (Front Audio interface 2*5pin)

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_12V (Can be used as input and output 12V power connector)

2* PWROUT (Hard drive power connector)

1* LVDS1 1*6pin

1* SIM

Fun interface

1* CPUFAN and SYSFAN 3pin

BIOS

AMI 8MB DPI Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12VSingle power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm
