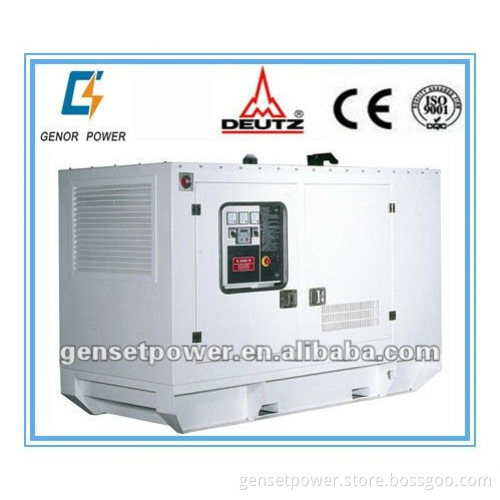

Deutz Super Silent power generator with stamford alternator

Specifications Deutz Diesel Generator

BRUSHLESS 100% COPPER ALTERNATOR

Smartgen GENERATOR CONTROLLER

LOW FUEL CONSUMPTION

DEUTZ  super silent  power generator   can be coupled with A.C.synchronous brushless alternator such as Stamford, Leroy Somer,Marathon etc.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125
GNRD50	37	46	40	50	D226B-3D	≤215	3	3	105*120
GNRD70	51	64	56	70	TD226B-3D	≤215	3	3	105*120
GNRD95	69	86	76	95	TD226B-4D	≤215	4	4	105*120
GNRD150	100	125	120	150	TD226B-6D	≤215	6	6	105*120
GNRD185	135	169	148	185	TBD226B6D	≤215	6	6	105*120
GNRD200	150	188	165	200	TBD234V6	≤210	V6	10.8	128*140

  Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, 2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: &le; &plusmn; 1% THF < 5%, low radio interference Control System choice
1. Common panle: With Unit voltage, tri-phase load current and frequency display. Water temperature and oil pressure display. Fuel level and fuel temperature display, with self-protection
2. Digital, Intelligentized panel. From manual start module, AFM module, to micro-computerize AMF/ATS and Automatic Parallel module, for meeting your different demand. Sound proof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy Accessories 1)Standard accessories: Standard 40 radiator mounted on kid. Common steel frame, circuit nreaker, damper, exhaust silencer, flexible pipe,battery and connecting wire, Standard tool skit, operation manual and document 2) Optional accessories: Engine collant and oil heater, alternator space heater, cooling for heating exchange, communictaion interface, battery charger by main supply,, ATS and paralleling system,silent canopy and moving trialer   Service scope:
OEM service, special pattern design service, 12 months warranty service. Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
