Top Quality ! F2L912D Deutz Air Cooled Generators

Specifications F2L912D Deutz Air Cooled Generators

1.Deutz Air Cooled Engine:F2L912D

2)Stamford Alternator

3)Low Fuel Consumption

4)CE

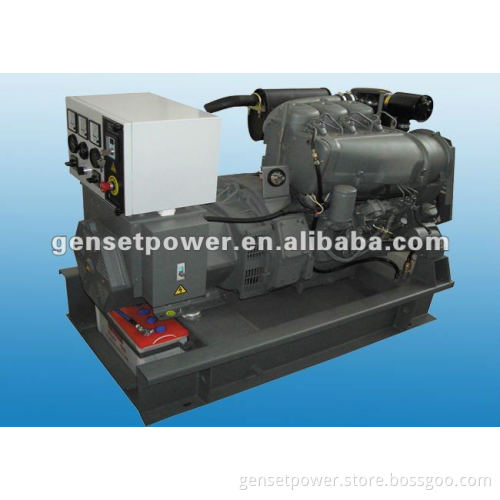

    Top Quality ! F2L912D Deutz Air Cooled Generators    DEUTZ engine is one of the most famous engines in the world. It gains plenty of users’ trust with its advanced performance. It is four strokes water cooled industrial engine. It is based on German technique, combined the outstanding feature of compact structure,big power, low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low noise, convenient using and easy maintenance. Its exhaust emission comes up to  EURO 2,3 standards

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125

      diesel engine Brand: Deutz  diesel engine  Modle F2L912D Multi-cylinder in-line or veer engine.4-stroke,direct injection Naturally aspirated,turbocharged,air cooled Machinery or electronic governing Fuel injection pump Electric motor starting system Forged steel crankshaft,castiron cylinder and replaceable wet type cylinder linder Low discharge and low fuel consumption    Alternator Optional brand: Stamford, Leroy Somer, Marathon.Enggaetc. Excitation Method: Brushless Self-excitation Standard 2/3 pitch winding ,effectively inhibited 3 times and triple harmonicas Insulation grade: H-level Protection grade: IP21-IP23 Electromagnetic interference: THF<2%, TIF<50 Structural features: single bearing or double bearing ,SAE standard interface   control panel automatic cutter which is suitable for the generator power.
Turn on key
A device to measure the generators speed
Counter for measuring the Operating hours
Device to measure the current overload with a switched current A device to measure the battery voltage
Voltmeter with a voltage exchanger
A device to measure the frequency
Thermostat to regulate the voltage
A device to measure the oil pressure
Alerting lamps indicating low and high temperature
Controller of the current increase and short circuit
Emergency stop button
