High efficiency emergency Automatic15kva to 1000kva generator made in Germany

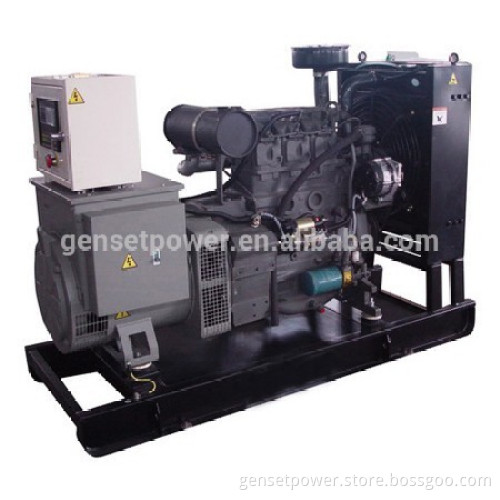

  High efficiency emergency Automatic15kva to 1000kva generator made in Germany   Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125
GNRD50	37	46	40	50	D226B-3D	≤215	3	3	105*120
GNRD70	51	64	56	70	TD226B-3D	≤215	3	3	105*120
GNRD95	69	86	76	95	TD226B-4D	≤215	4	4	105*120
GNRD150	100	125	120	150	TD226B-6D	≤215	6	6	105*120
GNRD185	135	169	148	185	TBD226B6D	≤215	6	6	105*120
GNRD200	150	188	165	200	TBD234V6	≤210	V6	10.8	128*140

     Genset Features:   1. Genuine Detuz diesel engine   2. Radiator 40°C max,fans are driven by belt, with safety guard   3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternator   4. Choice of manual/auto and AMF control panels and protection systems   5. Digital auto-start panel   6. Anti Vibration Suspension Absorber   7. Dry type air filter, fuel filter, oil filter   8. 10-hour operation base tank   9. Mould case circuit breaker   10. 24V DC start motor and storage battery   11. 24V charge alternator   12. 24V batteries, rack and cable   13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler   14. Comply with ISO and CE standards.   15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)   General Technical Data   1. Frequency: 50 & 60Hz   2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire   3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc   4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank   5. Monitoring meters and control switches   6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure     Control Panel:   1. Manual/Automatic start & stop controller
2. Various Monitor Meter and Optional Switch
3. Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
4. MCCB for Short circuit & Overload (optional)
5. High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm     Soundproof/Silent Box:   1. Excellent ventilation   2. Oil tank mounted on base frame for 12 Hours working   3. Highly Corrosion Resistant construction   4. Excellent Access for Maintenance   5. Security and Safety   6. 1m<80DBA / 7m<70DBA     Accessories     1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.     2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.         Warranty policy   Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
