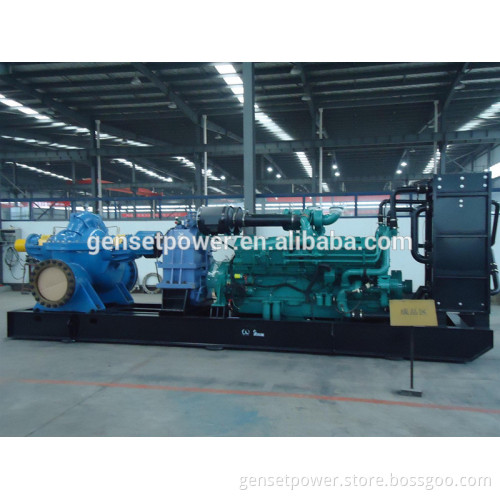

20kw to 500kw Engine Diesel Water Pump Specification

20kw to 500kw Engine Diesel Water Pump Specification       Engine Features: 1.World most famous brand diesel engine:Cummins,Deutz,china engine  2.Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3.Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4.Machinery or electronic goveming 5.Fuel injection pump, electric motor starting system 6.Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 7.Low discharge and low fuel consumption 8.Installed conveniently and maintain easily

Model	Outflow	Headlift	Engine model	Ratedspeed	Water pump
	m3/h	m		RPM
GWP240	240	29	K4100D	1500	IS150-125-315
GWP330	330	21.8	K4102D	1500	IS200-150-315B
GWP366	366	26.7	K4100ZD	1500	IS200-150-315A
GWP224	224	40.1	K4100ZD	1500	IS150-125-400A
GWP400	400	32	N4102ZD	1500	IS200-150-315
GWP100	100	32	Y480BD	1500	IS125-100-315J
GWP200	200	20	Y485AD	1500	IS150-125-250
GWP280	280	129	R6110ZLD	1500	D280-43*3
GWP155	155	60	R4105ZD	1500	D155-30*2
GWP1044	1044	13.4	R4105ZLD	1500	14SH-28A
DWP470	470	30.5	R4105ZD	1500	10SH-9A
GWP1440	1440	13.4	R6105ZD	1500	14SH-28

  Control system(OPTIONAL):
1)AMF/ATS function
2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc
3)Display functions with warning ,Auto start and stop
4)Weather canopy,trailer type,movalbe type

Standard equipment:
1)Diesel engine: 1set
2)Water pump: 1set
3)Gearbox speed reducer:1set
4)Control panel: 1set
5)Flexible shaft joint: 1pc
6)Steel mounting base:1set
7)Fuel tank: 8hr working capacity (OPTIONAL)
8)Accessory spare parts 1set
9)Technical file: 1set
10)With affiliated sensors and sensor wires
11)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)
