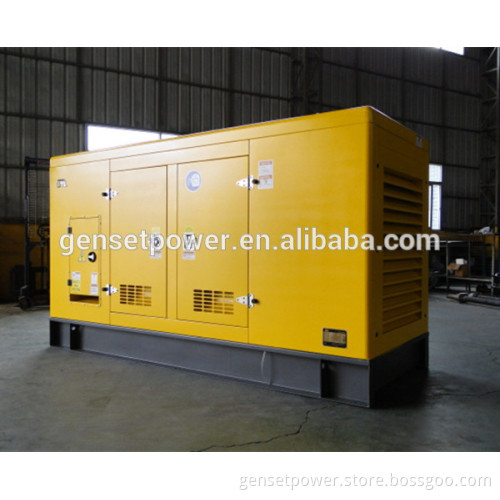

62.5kva to 625kva Engine Soundproof Doosan Diesel Generator

Specifications Doosan Diesel Generator

-Doosan diesel engine

-Increase efficiency 15%

-10 hours operation base tank

-Warranty:1 year

  62.5kva to 625kva Engine Soundproof Doosan Diesel Generator     The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.     Technical parameters of diesel generator sets:

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNR70DS	50	62.5	55	70	DB58	≤216	6	8	102*118
GNR94DS	72	90	80	94	D1146	≤216	6	8	111*139
GNR138DS	100	125	110	138	D1146T	≤216	6	8	111*139
GNR200DS	140	175	160	200	D086TI-1	≤216	6	8	111*139
GNR225DS	160	200	180	225	P086TI	≤216	6	8	111*139
GNR275DS	200	250	220	275	P126T1	≤216	8	8	123*155
GNR310DS	220	275	250	310	P126TI	≤216	6	11	123*155
GNR350DS	250	310	280	350	P126T11	≤215	6L	11	128*142
GNR413DS	300	375	330	413	P158LE-1	≤213	V8	14.6	128*142
GNR450DS	320	410	360	450	P158LE	≤212	V8	14.6	128*142
GNR500DS	360	450	400	500	P158LE	≤212	V10	18.3	128*142
GNR550DS	400	500	440	550	P180LE	≤212	V10	18.3	128*142
GNR625DS	450	560	500	625	P222LE-I	≤211	V12	21.9	128*142
GNR700DS	500	625	560	700	P222LE-S	≤211	V12	21.9	128*142

    Specifications:   Genset   1. Output range:50KW-500KW   2. Available Engine: Doosan(Daewoo)   3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fan\air cooling   4. Key start / auto start   5. Monitoring meters and control switches   6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure    Alternator:   1. Brushless, 4 poles, rotation magnet   2. IP21-23(NEMA1) enclose is standard for all industrial alternators   3. H class insulation system   4. AVR self-regulated, voltage regulation rate: ≤±1%   5. Wide range of flange adaptors and single bearing disc coupling   6. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528   7. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof    Control Panel:   1. Automatic control panel(AMF), LCD display   2. Four protection systems   3. Emergency stop    Optional:   1. Trailer type   2. Soundproof / water proof   3. ATS (automatic transfer switch)
