50KW To 500KW DOOSAN Diesel generator prices

Specifications Doosan Diesel Generator

-OEM DOOSAN

-Increase efficiency 15%

-10 hours operation base tank

-Warranty:1 year

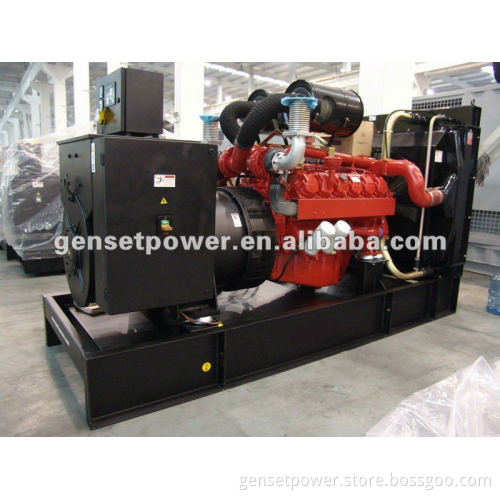

The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.   Technical parameters of diesel generator sets:
Genset Model	Prime Powe		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNR70DS	50	62.5	55	70	DB58	≤216	6	8	102*118
GNR94DS	72	90	80	94	D1146	≤216	6	8	111*139
GNR138DS	100	125	110	138	D1146T	≤216	6	8	111*139
GNR200DS	140	175	160	200	D086TI-1	≤216	6	8	111*139
GNR225DS	160	200	180	225	P086TI	≤216	6	8	111*139
GNR275DS	200	250	220	275	P126T1	≤216	8	8	123*155
GNR310DS	220	275	250	310	P126TI	≤216	6	11	123*155
GNR350DS	250	310	280	350	P126T11	≤215	6L	11	128*142
GNR413DS	300	375	330	413	P158LE-1	≤213	V8	14.6	128*142
GNR450DS	320	410	360	450	P158LE	≤212	V8	14.6	128*142
GNR500DS	360	450	400	500	P158LE	≤212	V10	18.3	128*142
GNR550DS	400	500	440	550	P180LE	≤212	V10	18.3	128*142
GNR625DS	450	560	500	625	P222LE-I	≤211	V12	21.9	128*142
GNR700DS	500	625	560	700	P222LE-S	≤211	V12	21.9	128*142

  Specifications:   Genset 1. Output range:50KW-500KW 2. Available Engine: Doosan(Daewoo) 3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fan\air cooling 4. Key start / auto start 5. Monitoring meters and control switches 6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure  Alternator: 1. Brushless, 4 poles, rotation magnet 2. IP21-23(NEMA1) enclose is standard for all industrial alternators 3. H class insulation system 4. AVR self-regulated, voltage regulation rate: ≤±1% 5. Wide range of flange adaptors and single bearing disc coupling 6. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 7. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof  Control Panel: 1. Automatic control panel(AMF), LCD display 2. Four protection systems 3. Emergency stop  Optional: 1. Trailer type 2. Soundproof / water proof 3. ATS (automatic transfer switch) 4. Parallel system 5. Remote system
