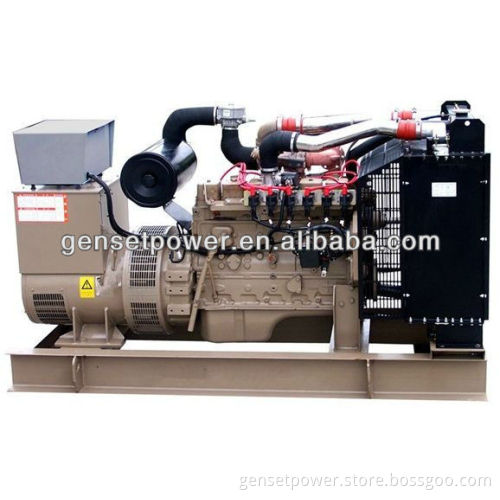

CE approved 20kva to 800kva Biogas Generator

Specifications Biogas Generator

Low biogas consumption generator

Low biogas content generator

Overhaul term: 18000~25000 hours

ISO9001

   CE approved 20kva to 800kva Biogas Generator          Biogas generator   1.500kW Biogas generator:     Respond to the national call of engery saving and emission reduction policy,the division of  developed marsh gas engine generator units as a green product.  While using bioengineering sets to supply electricity we aslo can supply hot water or steem by using residual heat or drive lithium bromide generator sets for refrigeration,and then to form the Termal energy Engineering System,which make the ratio ofenergy utilization more than 80%. The division makes full use of many mature and reliable technologies to keep their products maintain reliabiliy.

Model	500GF-NK1
Engine type	G12V190ZLDZ-2
AC motor	1FC6 456-6LA42
Control panel	GPL-500
Rated power	500KW
Rated speed	1000r/min
Rated voltage	400V
Rated current	902A
Rated fruquence	50Hz
Power factor   COSΦ	0.8(lag)
Heat consumpation	≤10MJ/kWh
Ignition method	Electronic MIC-500
Control system	WOODWARD-UMT1
efficience	≥33%
Exhaust temperature	≤650
Special oil consumpation (g/kW·h )	≤1
Starting method	24VDC
Cooling method	Water
Overhaul time(h)	≥35000
Overall dimension	5120×2040×2776.5
Wight (kg)	11800

 2.1000kW Biogas generator:
Main technical specifications are as follows:

Model of generating sets	1000GF-NK
Model of engine	H16V190ZLZ-2
Rated power      KW	1000
Continuous power (KW)	1000
Rated speed      (r/min)	1000
Rated voltage     (V)	400/230
Rated frequency   (Hz)	50
Rated power factor	0.8
Supply method	3 phases 4 lines
Excitation method	brushless
Starting method	24V DC starter 24V
Cooling method	Opened water cooled
Speed modulate method	Electronic control
Net weight       (kg)	21000kg
Overall dimension L×B×H(mm)	5998×2516×2540mm (Only for your reference)
Control panel	GPL1000A
Control method	Remote electronic control or manual control
Monitor and control	In-place communication interface or communication interface for remote meter-reading system
Synchronization control	IG-CU automatic control module
Starting method	Start in direct-current twinsat motor
Cooling system	Full-open water cooling system
Overhaul period	35000 hours

    Alternator Features for biogas generator 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
  Digital Control panel for biogas generator Controller Brand: Smartgen, Deepsea,ComAp Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown      Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80DBA / 7m<70DBA   Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.   Our Factory
