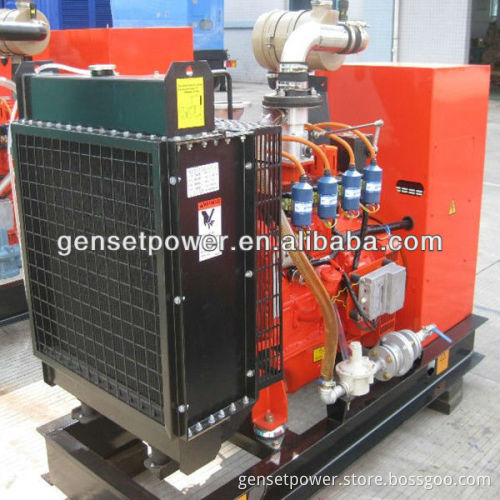

30kw Natural Gas Generator

Specifications 30kw Natural Gas Generator

-Gas Engine ,Stamford,Marathon

-Electronic Governor

-One Year Warranty

-CE & ISO 9001

             30kw Natural Gas Generator With Leroy Somer

Electrical Output(KW)	30
Voltage (V)	380/220
Engine Type	HG4B
Aspiration	Natural
Arrangement of cylinder :	4-In-Line ,4-Stroke-Cycle
Bore/stroke(mm) :	102/120
Engine speed (rpm):	1500
Total displacement (lit):	3.92
Compression ratio:	11.5:1
Fuel consumption(Nm3/hr):	8.57 at 100% prime power
Spark plug :	USA Altronic
ECU	USA Altronic
Governor type(speed regulating type)	Electronic governing
Cooling system	Water cooled
Starting mode :	24V DC Power
Open type noise level(dBA)	105 dBA at 3 meters
Soundproof type noise level (dBA)	73~75 dBA at 3 meters
Dimension (L*W* H*mm):	765×582×908
Weight (KG):	350

     Alternator Features: 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof   Digital Control panel Controller Brand: Smartgen, Deepsea,ComAp Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown      Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.   Warranty policy Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
