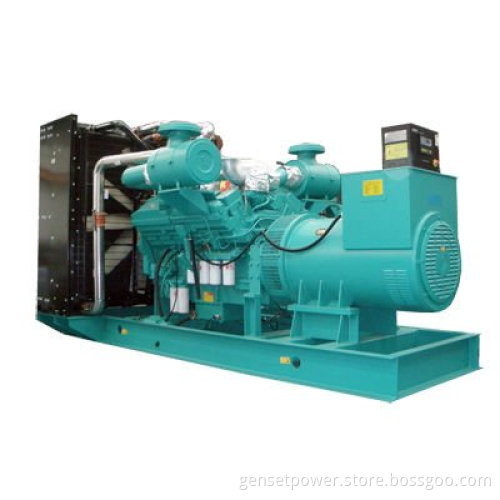

Diesel Generators 250KVA-1250KVA with Integrated ATS

Diesel Generators 250KVA-1250KVA with Integrated ATS

Parameters:
Genset Model	Prime Powe		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRC250	200	250	220	275	MTA11-G2A	≤210	6	10.8	125*147
GNRC313	250	313	275	350	MTAA11-G3	≤210	6	10.8	125*147
GNRC250	200	250	220	275	NTA855-G1	≤206	6	14	140*152
GNRC275	220	275	250	313	NTA855-G1A	≤206	6	14	140*152
GNRC313	250	313	275	350	NTA855-G2	≤207	6	14	140*152
GNRC350	280	350	310	400	NTA855-G4	≤208	6	14	140*152
GNRC375	300	375	330	413	NTAA855-G7	≤206	6	14	140*152
GNRC400	320	400	360	450	NTAA855-G7A	≤206	6	14	140*152
GNRC375	300	375	330	413	KTA19-G2	≤210	6	18.9	159*159
GNRC450	360	450	400	500	KTA19-G3	≤203	6	18.9	159*159
GNRC500	400	500	440	550	KTA19-G4	≤203	6	18.9	159*159
GNRC562	450	563	500	625	KTAA19-G5	≤204	6	18.9	159*159
GNRC625	500	625	560	700	KTA38-G	≤206	12	37.8	159*159
GNRC650	520	650	570	712	QSK19-G3	≤206	6	19	159*159
GNRC720	580	720	640	800	KTA38-GA	≤209	12	37.8	159*159
GNRC750	600	750	660	825	KTA38-G2	≤210	12	37.8	159*159
GNRC800	640	800	710	888	KTA38-G2B	≤210	12	37.8	159*159
GNRC900	720	900	780	975	KTA38-G2A	≤210	12	37.8	159*159
GNRC1000	800	1000	860	1075	KTA38-G5	≤202	12	37.8	159*159
GNRC1250	1000	1250	1100	1375	KTAA38-G9A	≤202	12	37.8	159*159
GNRC1250	1000	1250	1100	1375	KTA50-G3	≤215	16	50.3	159*159

      Performance Feature - Engine and alternator shall be mounted on a same frame steel skid.  - Built-in damper for anti-vibration. - Small size, low weight, easy to operating, installation and maintenance. - World most famous brand diesel engine- Chongqing Cummins Engine, Joint Venture with USA. - World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC. - Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 - Full range protect function and alarm shutdown feature.   Alternator Feature - Brush-less, 4 poles, rotation magnet. - IP21-23(NEMA1) enclosure is standard for all industrial alternators. - The insulation system is Class H - Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts. - Wide range of flange adaptors and single bearing disc coupling. - Standard 2/3 pitch windings avoid excessive neutral currents - AVR auto voltage regulator, auto exciter, auto adjustment   Standard Accessory     Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Connecting wires, Operation manual and document.   Optional Accessory Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.   Our factory   Certificate
