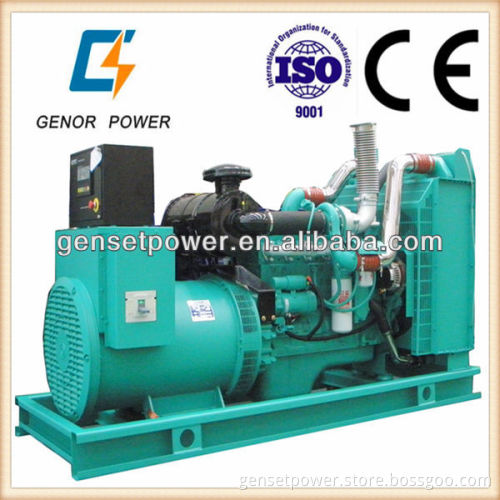

25KVA to 1000KVA Open Diesel Generator with genuine AMF-25 controller

25KVA to 1000KVA Open Diesel Generator with genuine AMF-25 controller

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRC30	20	25	24	30	4B3.9-G	≤229	4	3.9	102*120
GNRC35	24	30	28	35	4BT3.9-G	≤214	4	3.9	102*120
GNRC56	40	50	45	56	4BTA3.9-G	≤215	4	3.92	102*120
GNRC63	45	56	50	63	4BTA3.9-G	≤215	4	3.92	102*120
GNRC70	50	63	56	70	6BT5.9G1	≤215	6	5.88	102*120
GNRC106	78	98	85	106	6BT5.9G	≤215	6	5.88	102*120
GNRC125	90	113	100	125	6BT5.9G2	≤215	6	5.88	102*120
GNRC150	104	130	120	150	6BT5.9G2	≤215	6	5.88	102*120
GNRC165	120	150	132	165	6CTA8.3-G2	≤210	6	8.3	114*135
GNRC200	140	175	160	200	6CTA8.3-G2	≤210	6	8.3	114*135
GNRC225	160	200	180	225	6CTAA8.3-G2	≤210	6	8.3	114*135
GNRC275	200	250	220	275	6LTAA8.9-G2	≤210	6	8.3	114*135
GNRC313	220	275	250	313	NTA855-G1A	≤206	6	14	140*152
GNRC350	250	313	275	350	NTA855-G2	≤207	6	14	140*152
GNRC400	280	350	310	400	NTA855-G4	≤208	6	14	140*152
GNRC413	300	375	330	413	NTAA855-G7	≤206	6	14	140*152
GNRC450	320	400	360	450	NTAA855-G7A	≤206	6	14	140*152
GNRC500	360	450	400	500	KTA19-G3	≤203	6	18.9	159*159
GNRC550	400	500	440	550	KTA19-G4	≤203	6	18.9	159*159
GNRC605	440	550	484	605	KTAA19-G6	≤204	6	18.9	159*159
GNRC625	450	563	500	625	KTAA19-G7	≤204	6	18.9	159*159
GNRC700	500	625	560	700	KTA38-G	≤206	12	37.8	159*159
GNRC712	520	650	570	712	QSK19-G3	≤206	6	19	159*159
GNRC800	580	720	640	800	KTA38-GA	≤209	12	37.8	159*159
GNRC825	600	750	660	825	KTA38-G2	≤210	12	37.8	159*159
GNRC888	640	800	710	888	KTA38-G2B	≤210	12	37.8	159*159
GNRC975	720	900	780	975	KTA38-G2A	≤210	12	37.8	159*159
GNRC1075	800	1000	860	1075	KTA38-G5	≤202	12	37.8	159*159

     diesel engine engine model: Cummins engine part :water tower,fan,fuel tank governor system:electrical or mechanical governor aspiration mode:natural, turbocharged start method: 12V/24V DC electric starting low fuel cnsumption,low noise,small volume,light weight 3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions   Alternator: Brand: Stamford,LeroySomer, Marathon,Engga Rated output:25KVA-2000KVA Rated voltage: 400/230V Rated frequency: 50/60Hz Power factor: 0.8 Phase: 3-phase, 4-wire Rated speed: 1,500rpm/1,800rpm Excitation: harmonic excitation or phase compound or brushless Voltage regulation: automatic 1.0% voltage regulation (maximum) in static conditions Protection class:  IP21-23   Control panel The generator control panel is manufactured locally Standard engine instrumentation Voltmeter with selector switch Ammeter with selector switch Frequency meter Current transformers Instrument fuses duly wired and ferruled Mcb of suitable rating with overload and short-circuit protection With AMF control panel or with ATS (automatic transfer system) With EPA certification   Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.     Engine   Original Stamford Alternator   Open Type Genset with Cummins engine :   Silent Type Genset:
