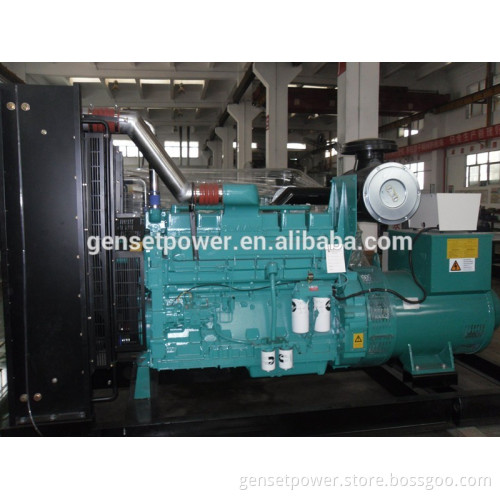

Promotion ! generator prices pakistan with cummins engine

Promotion ! generator prices pakistan with cummins engine

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRC23	16	20	18	22.5	4B3.9-G	≤229	4	3.9	102*120
GNRC30	20	25	24	30	4B3.9-G	≤229	4	3.9	102*120
GNRC35	24	30	28	35	4BT3.9-G	≤214	4	3.9	102*120
GNRC56	40	50	45	56	4BTA3.9-G	≤215	4	3.92	102*120
GNRC63	45	56	50	63	4BTA3.9-G	≤215	4	3.92	102*120
GNRC70	50	63	56	70	6BT5.9G1	≤215	6	5.88	102*120
GNRC106	78	98	85	106	6BT5.9G	≤215	6	5.88	102*120
GNRC125	90	113	100	125	6BT5.9G2	≤215	6	5.88	102*120
GNRC150	104	130	120	150	6BT5.9G2	≤215	6	5.88	102*120
GNRC165	120	150	132	165	6CTA8.3-G2	≤210	6	8.3	114*135
GNRC200	140	175	160	200	6CTA8.3-G2	≤210	6	8.3	114*135
GNRC225	160	200	180	225	6CTAA8.3-G2	≤210	6	8.3	114*135
GNRC275	200	250	220	275	MTA11-G2A	≤210	6	10.8	125*147
GNRC313	220	275	250	313	NTA855-G1A	≤206	6	14	140*152
GNRC350	250	313	275	350	NTA855-G2	≤207	6	14	140*152
GNRC400	280	350	310	400	NTA855-G4	≤208	6	14	140*152
GNRC413	300	375	330	413	NTAA855-G7	≤206	6	14	140*152
GNRC450	320	400	360	450	NTAA855-G7A	≤206	6	14	140*152
GNRC500	360	450	400	500	KTA19-G3	≤203	6	18.9	159*159
GNRC550	400	500	440	550	KTA19-G4	≤203	6	18.9	159*159
GNRC605	440	550	484	605	KTAA19-G6	≤204	6	18.9	159*159
GNRC625	450	563	500	625	KTAA19-G7	≤204	6	18.9	159*159
GNRC700	500	625	560	700	KTA38-G	≤206	12	37.8	159*159
GNRC712	520	650	570	712	QSK19-G3	≤206	6	19	159*159
GNRC800	580	720	640	800	KTA38-GA	≤209	12	37.8	159*159
GNRC825	600	750	660	825	KTA38-G2	≤210	12	37.8	159*159
GNRC888	640	800	710	888	KTA38-G2B	≤210	12	37.8	159*159
GNRC975	720	900	780	975	KTA38-G2A	≤210	12	37.8	159*159
GNRC1075	800	1000	860	1075	KTA38-G5	≤202	12	37.8	159*159
GNRC1375	1000	1250	1100	1375	KTA50-G3	≤215	16	50.3	159*159
GNRC1650	1100	1375	1310	1650	KTA50-G8	≤215	16	50.3	159*159
GNRC1675	1200	1500	1340	1675	KTA50-GS8	≤215	16	50.3	159*159
GNRC1875	1350	1688	1500	1875	QSK60-G3	≤215	16	60	159*190
GNRC2063	1500	1875	1650	2063	QSK60-G3	≤215	16	60	159*190
GNRC2250	1600	2000	1800	2250	QSK60-G4	≤215	16	60	159*190

  detailed product description for  generator prices pakistan:
1) Rated output: 20kva 2000kva
2) Rated voltage:  220V/380V, 230V/400V, 240V/415V 3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.

Engine: Cummins engine 1)Cooling method: closed water cooling 2)Multi-cylinder in-line or veer engine, 4-stroke, direct injection 2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm
Alternator:
1) Brand:  Stamford,LeroySomer, Marathon,Engga 2) Rated output: 20kva to 2000kva 3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP21-IP23 14)Connect with engine:Direct coupled with flywheel

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification
  Warranty policy   Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
