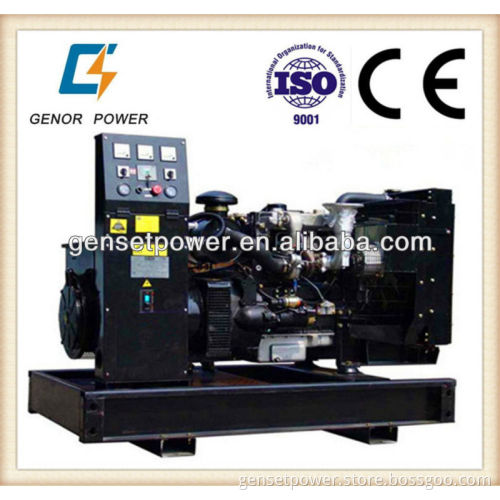

Soundproof 50kw Power Generator With Perkins Engine

Specifications 50kw Power Generator

1.UK Engine:1004TG

2.Stamford Brushless Alternator

3.Deepsea Control Panel

4.220V/380V,50HZ ,1500rpm

 Soundproof 50kw Power Generator With Perkins Engine   UK imported power generator  have earned a reputation for ease of service along with low costs of maintenance and repair and all Pekin Power part products carry an unequivocal 12-months warranty from date of purchase . The engine are 4-cycle,cooled by fan radiator,adopt shelly fuel filter&oil filter cleaner,dry air cleaner,beautiful appearance,fine quality,reliable capability   Engine Features: 1. World most famous brand diesel engine:  UK imported 1000 series engine 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption 9. Installed conveniently and maintain easily Alternator Features: 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80 dB / 7m<70dB   Control Panel: 1. Automatic control panel (AMF), LCD display 2. Four protection systems 3. Emergency stop   Optional: 1. Trailer type 2. Soundproof / water proof 3. ATS (automatic transfer switch) 4. Parallel system 5. Remote system

TECHNICAL DATA
GENSET MODEL	GNRP50
Rated output	50KW/62.5KVA
Rated Voltage	220/380V,230/440V;etc
Frequency	50HZ
DIESEL ENGINE MODEL	1004TG
Rated ouput (kw)	65.7kw
Governing method	Electrical/Mechanical
Oil box volume(L)	64L
Bore x Stroke(mm)	100*127mm
Apirated	Natural
Cooling Starting Method	Closed water cooled
ALTERNATOR	Stamford,LeroySomer, Marathon,Engga
Rated power	50
Rated frequency	50HZ
Rated speed (rpm)	1500
Power factor	0.8 lagging for 3-phase
Phase connection	3-phase
Winding connection	4 -wire connected(12-wire for 3-phase)
Excitation method	Brushless
Insulation class	H
Voltage regulation	AVR
CONTROL PANEL	V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp. and pressure gauges, indicating lamp, hour meter, key starter, etc.
