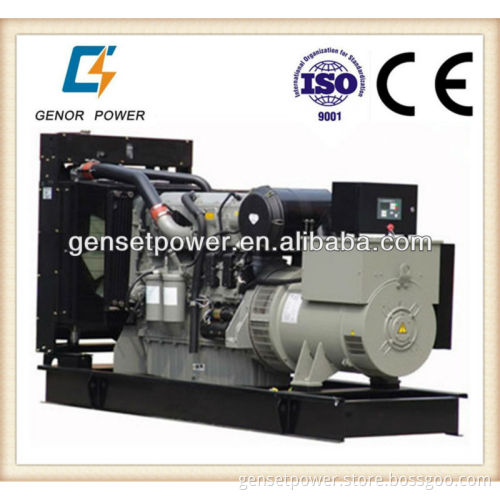

UK 1000kva Diesel Generator Set With Perkins Engine

Specifications UK 1000kva Diesel Generator Set

-UK Engine & Leroy Somer

-Output Power :1000kva

-Reliable quality & factory price\

-CE

 UK 1000kva Diesel Generator Set With Perkins Engine   power generator  have earned a reputation for ease of service along with low costs of maintenance and repair and all  Power part products carry an unequivocal 12-months warranty from date of purchase . The engine are 4-cycle,cooled by fan radiator,adopt shelly fuel filter&oil filter cleaner,dry air cleaner,beautiful appearance,fine quality,reliable capability

Technical Data
Genset Model	GNRP1100
Prime Power	1000KVA/800KW
Standby Power	1100KVA/880KW
Rated Voltage	400/230V
Frequency	50Hz
Radiator	50°C max with coolant cap
Charge Alternator	24V
Dimension(L*W*H) (mm)	4690×2070×2355
Net Weight (kg)	8852
Diesel Engine
Brand			UK Imported
Model			4008TAG2A
Governor Type			Electrical
Rotating Speed			1500 rpm
Engine Cooling Method			Water-cooled
Displacement(L)			30.561 L
Bore×Stroke(mm)			160×190
Alternator
Brand		LEROY SOMER
Model		LSA50.2 S3
Power Factor(COS Phi)		0.8
Excite Type		Brushless SHUNT
Connecting Type		3 Phase & 4 Wires
Insulation Degree		H/H
Enclosure Degree		IP23
The components of the genset : 1.Diesel Engine 2.Alternator 3.Control Panel

    Control Plane :    Controller Brand: Deepsea Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
