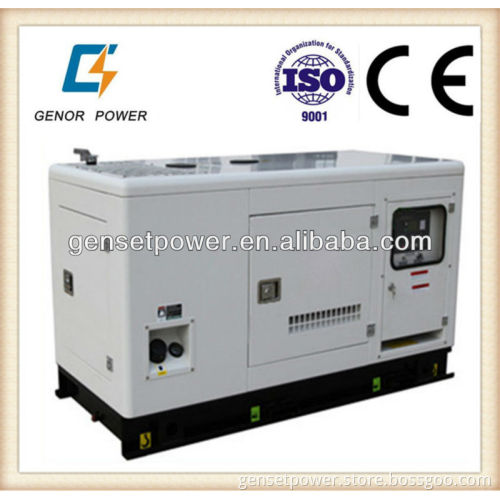

Japan Brand ! Low Noise Portable Generator

Specifications Low Noise Portable Generators

1) Kubota Diesel Generator

2) Imported From Japan

3) Noise Level:70dB at 7m away

4) CE

    Japan Brand ! Low Noise Portable Generators   Kubota  generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.

Genset Model	Prime Power (kva)	Engine Model	Cynlinder No.	Bore x Stroke	Displace -ment	Compression Ratio	Packing (mm) (L x W x H)
GNR-K10	10	V1505-E2BG-CHN-1	4	78 x 78.4	1.498	24:1	2000 x 960 x 1100
GNR-K13	12.5	D1703-E2BG-CHN-1	3	87 x 92.4	1.647	23:1	2000 x 960 x 1100
GNR-K18	17.5	V2203-E2BG-CHN-1	4	87 x 92.4	2.197	23:1	2000 x 960 x 1100
GNR-K20	20	V2003-T-E2BG-CHN-1	4	83 x 92.4	1.999	23:1	2000 x 960 x 1100
GNR-K28	27.5	V3300-E2BG2-CHN-1	4	98 x 110	3.318	22.6:1	2300 x 1100 x1300
GNR-K35	35	V3300-T-E2BG2-CHN-1	4	98 x 110	3.318	21.8:1	2300 x 1100 x1300

     Engine Features: 1. World most famous brand diesel engine: Kubota 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption 9. Installed conveniently and maintain easily   Alternator Features: 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate:≤±1%     Control system: 1) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current. 2) Operation display:    a) Unit voltage, tri-phase load current and frequency display       b) Water temperature, oil pressure display       c) Fuel level, fuel temperature display       d) Audible and visual alarm lamps and buzzers     Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80 dB/7m<70dB    Silent Type Generator   Our Factory
