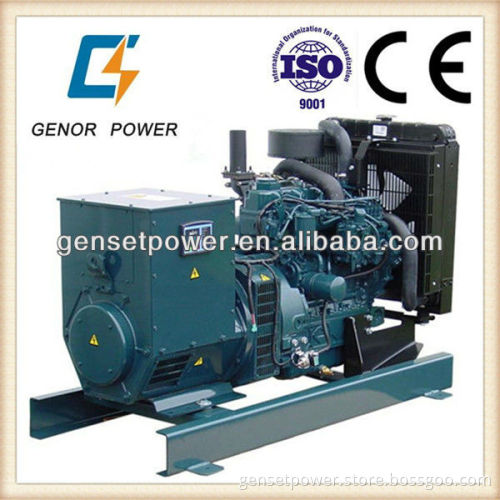

Japan Kubota Power 35kva Generator

Specifications 35kva Generator

1) Kubota Engine:V3300

2)Prime Power :35kva

3)Stamford Brushless Alternator:

4)220V/380V,50HZ,1500rpm

     Japan Kubota Power 35kva Generator   Kubota  generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.

Power	35KVA	Standby Power	39KVA
Rated Speed	1500RPM	Output Frequency	50HZ
Phase	3	Rated Voltage	400V
Engine Model	V3300-T-E2BG2	Alternator Model	PI 144J
Fuel consumption of 100% load	8.2L/H	Fuel Consumption of 75% load	6.2L/H
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%
Dimension (open type)	1750x750x1200mm	Weight (Open type)	680kg
Dimension (silent type)	2000x850x1350mm	Weight (Silent type)	900kg

  Kubota Engine specification:

Engine Model	V3300-T-E2BG2
Number of Cylinder	4
Cylinder arrangement	Vertical in line
Cycle	Four stroke
Aspiration	Natural Aspiration
Bore x Stroke (mm)	98x110
Displacement	3.3187L
Compression Ratio	23.0:1
Prime power	32.1kw
Standby power	35.3kw
Speed Governor	Mechanical
Cooling system	Water cooled
Speed Stability%	≤5%
Total Lubrication System Capacity	13.2L
Coolant Capacity	9.5L
Fuel Consumption at 100%	8.2
Starter Motor	DC12V
Alternator	AC12V

  Control panel:
1. The generator control panel have three style for diffrent markets required
2. Mcb of suitable rating with overload and short circuit protection
3. With AMF control panel or with ATS ( automatic transfer syste)   Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80 dB/7m<70dB    Warranty policy Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
