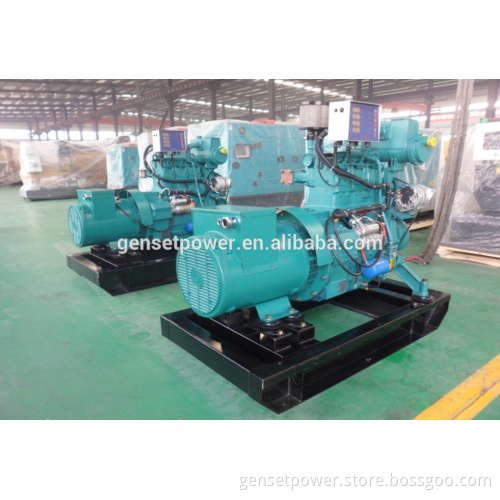

Deutz 10kva Marine Diesel Generator

Get Latest Price

Payment Type:: L/C, T/T

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 25 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	200 Set/Sets per Month
Payment Type:	L/C,T/T

Product Description

Deutz 10kva Marine Diesel Generator marine diesel generator: 1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects. 2) Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc 3) Compact, high power per liter; 4) Full range protection function and alarm shutdown feature.
5) Bronze gear-type sea water pump;

Marine Diesel Generator Set		Weichai Deutz 226B Series Diesel Engine				Dimensions
(400/230V/120C, 50Hz/60Hz, 3 P 4W)		(Electrical Starting, Dual-circulate water-cool)				Dimensions
Genset Model	Rated Power	Engine Model	Max* output	Rated Speed	Governing Method	(LWD)
Genset Model	(KW)	Deutz	(KW)	(rpm)	Governing Method	(mm)
GNRDM-12	12	D226B-3C	22	1500	Mechanical	13855801159
GNRDM-16	16	D226B-3C	22	1500	Mechanical	14156001181
GNRDM-20	20	D226B-3CD	30	1500	Mechanical	14556201200
GNRDM-24	24	D226B-3CD	33	1500	Mechanical	14886201231
GNRDM-30	30	TD226B-3CD	44	1500	Mechanical	14886201231
GNRDM-40	40	TD226B-4CD	66	1500	Mechanical	17746201431
GNRDM-50	50	TD226B-4CD	66	1500	Mechanical	17746201431
GNRDM-64	64	TD226B-6CD	99	1500	Mechanical	20917981336
GNRDM-75	75	TD226B-6CD	99	1500	Mechanical	20917981336
GNRDM-90	90	TBD226B-6CD	132	1500	Mechanical	22077981336
GNRDM-100	100	TBD226B-6CD	132	1500	Mechanical	22077981336
GNRDM-120	120	TBD226B-6CD5	145	1500	Electrical	22567981336

Protective function of operation 1) Low oil pressure alarm and shutdown 2) High temperature alarm and shutdown 3) Over speed alarm and shutdown Standard Configure of marine diesel dc generator:

1) High Performance Marine Engine	6) MCCB, Muffler, Air filter
2) Brushless Stamford Alternator (IP23)	7) 2*12V Heavy duty start batteries
3) Steel base frame with shock absorber	8) Battery cable & Atteched accessories
4) Standard control box	9) Manual books and parts books
5) Sea-water heat exchanger	10) Optional digital monitor
