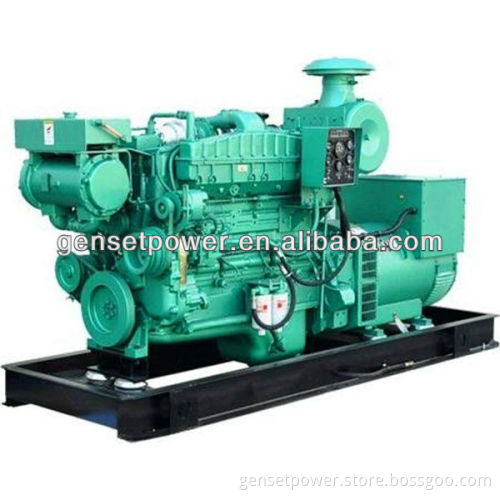

Water Cooled Engine Marine Diesel Generator 500kw

Water Cooled Engine Marine Diesel Generator 500kw    1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects.
2)  Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc
3) Compact, high power per liter;
4) Full range protection function and alarm shutdown feature.
5) Bronze gear-type sea water pump;

Genset Model	Prime Power		Standby Power		Engine Model	Rated Power	Dimension	Weight
	KW	KVA	KW	KVA		KW/RPM	L×W×H(mm)	Kgs
GNRC40M	40	50	44	55	4BTA3.9-GM47	47/1500	1670*850*1270	800
GNRC50M	50	63	55	69	6BT5.9-GM83	83/1500	1900*895*1300	1000
GNRC65M	65	81	72	89	6BT5.9-GM83	83/1500	1900*900*1300	1100
GNRC80M	80	100	88	110	6BTA5.9-GM100	100/1500	1920*895*1300	1250
GNRC100M	100	125	110	138	6CT8.3-GM115	115/1500	2110*810*1360	1650
GNRC125M	125	156	138	172	6CTA8.3-GM155	155/1500	2110*810*1360	1700
GNRC140M	140	175	154	193	NT855-DM	180/1500	2685*995*1790	1750
GNRC170M	170	213	187	234	NT855-DM	205/1500	2690*995*1790	2900
GNRC200M	200	250	220	275	NTA855-DM	240/1500	2760*995*1790	3100
GNRC240M	240	300	264	330	NTA855-DM	284/1500	2760*995*1790	3180
GNRC270M	270	338	297	371	NTA855-DM	306/1500	2850*995*1790	3250
GNRC300M	300	375	330	413	KTA19-DM	336/1500	3170*1000*1905	3750
GNRC360M	360	450	396	495	KTA19-DM	403/1500	3170*1000*1905	3800
GNRC400M	400	500	440	550	KTA19-DM	448/1500	3170*1000*1905	3950

       Engine Features: 1. Genuine Marine diesel engine 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption 9. Installed conveniently and maintain easily   Alternator Features: 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof Digital Control panel Controller Brand: Smartgen Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown   Warranty policy Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
