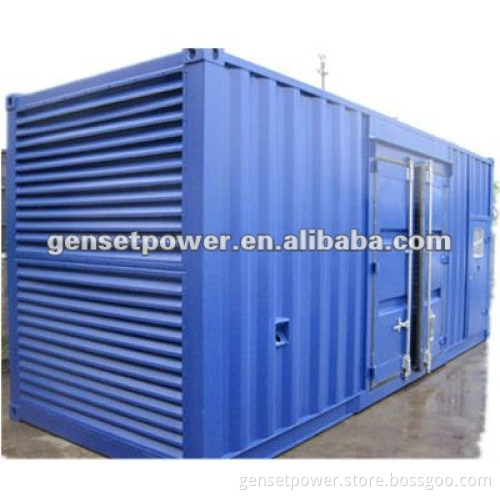

silent Mitsubishi diesel generator set

Specifications silent diesel generator

-OEM Mitsubishi & Stamford, Leroy Somer

-Smartgen controller

-noise level:68dB at 7m away

Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180
GNRM1875	1300	1625	1500	1875	S16-PTA	≤207	16	65.4	170*180
GNRM2100	1500	1875	1680	2100	S16-PTA2	≤207	16	65.4	170*180
GNRM2250	1600	2000	1800	2250	S16-PTAA2	≤207	16	65.4	170*180

     The feature of Mitsubishi series diesel generating sets   Steady $ credible running, high shock resistance, strong load resistance, sufficient output power.   Low oil consumption, low emission;   Easy and cheap maintenance;   Small and light figure    Electric capability of  diesel generator sets.   Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502 Technical requirement of special diesel generating set for telecom. Voltage Regulation(%):Steady state≤±1 Transient state -15~+20 Frequency Regulation(%):Steady state≤±1 Transient state -7~+10 Voltage Fluctuation ratio(%):≤0.5 Frequency Fluctuation ratio(%):≤0.5 Voltage stabilization time(When the load changes suddenly): ≤1S Frequency stabilization time(When the load changes suddenly): ≤3S Waveform Distortion(%):≤5 Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820 To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.   Diesel Engine Stroke: 6-16 Combustion system: Direct spray or Electronic spray Start: DC start Cooling: Coolant radiator with fan   AC Generator Structure Characteristics: Single bearing, automatic voltage regulation (AVR) Excitation: Brushless & self-excited Insulation: H grade Level of protection: IP21 or IP23   control Box Manual/Automatic start & stop controller Various Monitor Meter and Optional Switch Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional) MCCB for Short circuit & Overload (optional) High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm   Standard scope of suppl  Diesel generating set include: Diesel engine (with all standard accessories, filters and electric system) Radiator (with water tank and fan) Alternator Control panel Steel base frame All above parts are assembled into a whole   Other standard parts: Effective muffle Exhaust elbow Bellows Storage battery and connection wires Shock absorber Technical documents   Optional equipments Auxiliary device for starting at low temperature ATS(Automatic transfer switch) Genset combined device Water forewarmer Moisture eliminator of alternator Various kind of monitoring system Remote monitoring system Fuel tank for daily use or base frame fuel tank      Other kinds of special equipment Soundproof canopy Mobile Diesel Generating Set Container Generating Set Power Station for refrigerated container generating set Gantry Diesel Generating Set
