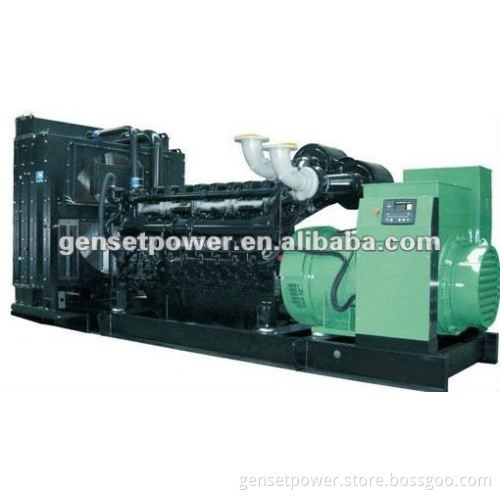

Industrial Mitsubishi generator set 375kVA to 2000kVA

Specifications 1)industrial construction

2)automatic control panel

3)electric start, water cooled

4)CE certificate

  Mitsubishi industrial diesel generator 600kVA to 2000kVA with 12 months warranty

Special Features:

Engine: Mitsubishi (Japan origin)
Water-cooled, four-stoke, wet cylinder liner, direct injection
Turbo charged, 1, 500/1, 800rpm
Alternator: Stamford,LeroySomer, Marathon,Engga Brushless PMG (permanent magnet generator)
2/3 pitch windings design can effectively eliminate the third harmonic wave of the voltage
IP21-23 enclosure preventing drops of water within 60 degrees to vertical line
H class insulation
Parameters of generator set:
Power range: 375kVA to 2000kVA
Rating voltage: 220V/380V, 230V/400V, 240V/415V Frequency: 50/60Hz
Mode of connection: Three phase, four wires
Power factor: 0.8 (lagging)

Standard accessories:
Standard control panel, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document

Optional accessories:
Intelligence control panel, water heater, oil-water separator battery charger, daily fuel tank, sound-resistant canopy, weather-resistant canopy and mobile trailer

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180
GNRM1875	1300	1625	1500	1875	S16-PTA	≤207	16	65.4	170*180
GNRM2100	1500	1875	1680	2100	S16-PTA2	≤207	16	65.4	170*180
GNRM2250	1600	2000	1800	2250	S16-PTAA2	≤207	16	65.4	170*180
