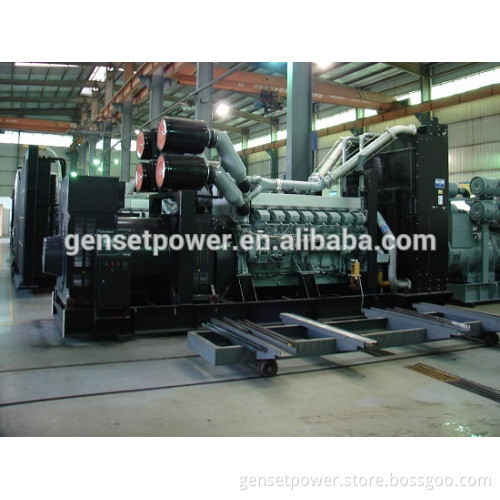

600kw to 1500kw Mitsubishi Open Type Diesel Generator

Specifications Mitsubishi Open Type Diesel Generator

1.Low fuel consumption

2.High efficiency and reliability

3.Original Japan Engine

  600kw to 1500kw Mitsubishi Open Type Diesel Generator

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180
GNRM1875	1300	1625	1500	1875	S16-PTA	≤207	16	65.4	170*180
GNRM2100	1500	1875	1680	2100	S16-PTA2	≤207	16	65.4	170*180
GNRM2250	1600	2000	1800	2250	S16-PTAA2	≤207	16	65.4	170*180

      The specification of engine: 1) engine model:  Mitsubishi 2) engine part :water tower,fan,fuel tank 3) governor system:electrical or mechanical governor 4) aspiration mode:natural, turbocharged 5) start method: 12V/24V DC electric starting 6) low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions     The specification of alternator: 1)alternator model: stamford, Leroy, Marathon.Engga 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4)power factor:3 phase 4 wire 5)Motor: bronze brushless     6) IP21-23 enclosure   control panel 1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current 6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button   optional: 1)Auto-remove Monitor Panel 2)Auto Transfer System(ATS) 3)Auto-combine Cabinet 4)Sound proof canopy 5)Intelligent controlling system
