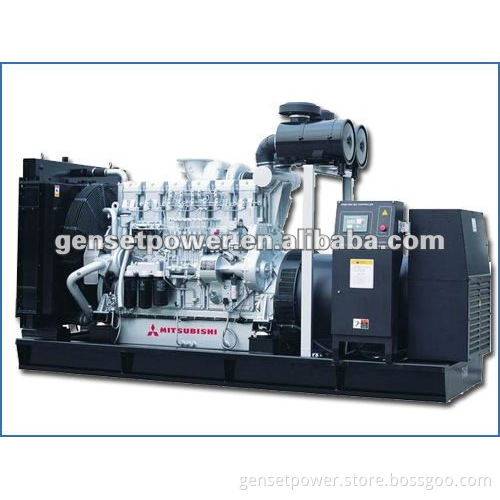

Japanese Mitsubishi Diesel genset

Specifications Mitsubishi Diesel genset

1 Mitsubishi Engine

2 Low consumption

3 High efficiency and reliability

4 Original Import

  Japanese Mitsubishi Diesel genset     The specification of diesel generating set 1)Type:open,sound proof,weather proof 2)Power:375kva  to 1875kva 3)Rated voltage::  220V/380V, 230V/400V, 240V/415V 4)Frequency:50Hz/60Hz 5)Rated speed:1500rpm/1800rpm 6)Output type: single phase/AC three phase 7)Steel structure base 8)Optional:fuel tank,battery,charger     The specification of engine: 1) engine model:  Mitsubishi 2) engine part :water tower,fan,fuel tank 3) governor system:electrical or mechanical governor 4) aspiration mode:natural, turbocharged 5) start method: 12V/24V DC electric starting 6) low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions     The specification of alternator: 1)alternator model: stamford, Leroy, Marathon.Engga 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4)power factor:3 phase 4 wire 5)Motor: bronze brushless     6) IP21-23 enclosure     Control System
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm

optional: 1)Auto-remove Monitor Panel 2)Auto Transfer System(ATS) 3)Auto-combine Cabinet 4)Sound proof canopy 5)Intelligent controlling system

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180
GNRM1875	1300	1625	1500	1875	S16-PTA	≤207	16	65.4	170*180
GNRM2100	1500	1875	1680	2100	S16-PTA2	≤207	16	65.4	170*180
GNRM2250	1600	2000	1800	2250	S16-PTAA2	≤207	16	65.4	170*180
