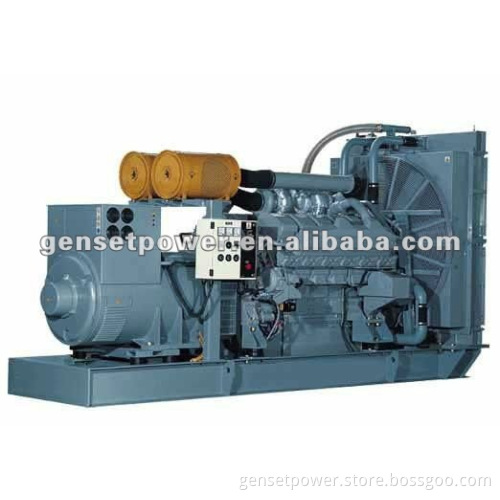

Industrial water cooled engine 300kw to 1200kw mitsubishi diesel generating set

Industrial water cooled engine 300kw to 1200kw mitsubishi diesel generating set   Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180

    The specification of diesel generating set 1)Type:open,sound proof,weather proof 2)Power:375kva to 1500kva 3)Rated voltage: 220V/380V, 230V/400V, 240V/415V 4)Frequency:50Hz/60Hz 5)Rated speed:1500rpm/1800rpm 6)Output type: single phase/AC three phase 7)Steel structure base 8)Optional:fuel tank,battery,charger     The specification of engine: 1)engine model: mitsubishi 2)engine part :water tower,fan,fuel tank 3)governor system:electrical or mechanical governor 4)aspiration mode:natural, turbocharged 5)start method: 12V/24V DC electric starting 6)low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions       The specification of alternator: 1)alternator model: stamford, Leroy, Marathon 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4) Protection class :IP21-23 5)power factor:3 phase 4 wire 6)Motor: bronze brushless 7) rated voltage:  220V/380V, 230V/400V, 240V/415V .  8)rate frequency:50/60 HZ   control Box Manual/Automatic start & stop controller Various Monitor Meter and Optional Switch Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional) MCCB for Short circuit & Overload (optional) High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm   Standard scope of supply  Diesel generating set include: Diesel engine (with all standard accessories, filters and electric system) Radiator (with water tank and fan) Alternator Control panel Steel base frame All above parts are assembled into a whole
