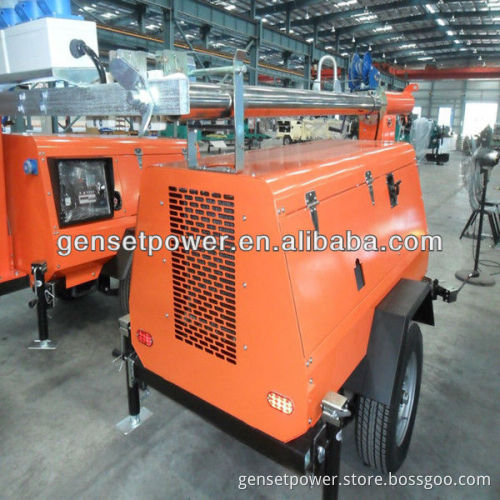

Towable Diesel Engine Trailer Mounted Light Towers 6kw

Specifications Towable Diesel Engine Trailer Mounted Light Towers 6kw

1.World Brand Diesel Generator

2.9m Mast with 4 Light Tower

3.CE

 Towable Diesel Engine Trailer Mounted Light Towers 6kw Parameters:

MODEL	GNR-4000M
Mast
Maximum extention of mast	9m
Elevation	Mechanical
Rasing / Lowing mast	Winch(Mechanical)
Stages	3
Turning angle	360 degree non-continuous
Lamp
Total power of lamps	4*1000W
Type of lamp	Metal halide lamp
Light capacity	4*110,000 lumen
Frequency	50Hz / 60Hz
Lifetime of lamp	2000 hours
Working temperature	<85°C
Connection protection index	IP54
Light Coverage	5 to 7 acres
Characterisitics of the generator
Model	GNRK6
Rated power	50Hz 5.6 kW
Standby power	50Hz 6.2 kW
Voltage	110,120,220,230,240
Engine model	Kubota D905  Diesel
Engine type	3 Cylinder, in line, water-cooled
Engine speed	50Hz 1500 rpm     60Hz 1800 rpm
Starting systerm	12VDC
Alternator	Brushless,self-excitation with AVR
Prime fuel consumption               at 100% load	2.0L/h
Fule tank capacity	100L
Emission level	EU Stage IIIA
Trailer
Tow hitch	Ring or ball hitch
Stabilier Support	5 × manual
Tire Size	185/60R14
Anti-wind capacity	≤10
Brakes	Manual
Dimension & Weight
Retracted  Dimension	4300 × 1120 × 1730  L×W×H mm
Container load (20FT / 40FT)	6 / 12 units
Net weight	790 Kgs

      Engine Features: 1. World most famous brand diesel engine: Kubota/Yanmar/Perkins/Cummins 2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption 9. Installed conveniently and maintain easily   Alternator Features: 1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1%   Soundproof/Slient Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and safety 6. 1m<80dB/7m<70dB   Control Panel: 1. Automatic control panel(AMF), LCD display 2. Four protection systems 3. Emergency stop   Optional: 1. Trailer type 2. Soundproof/water proof 3. ATS(automatic transfer switch) 4. Parallel system 5. Remote system
