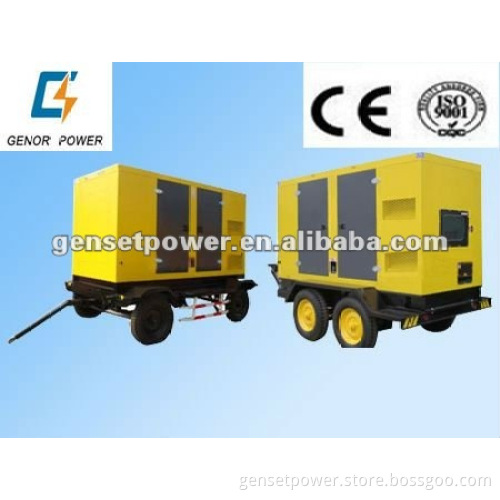

trailer mounted generator with double axle and 4 wheels

Specifications -Trailer Generator

-OEM top quality,

-Advanced design

-.Reliable performance

Introduction of generator     1) Trailer mobile power station is designed on the basis of national standards of GB/T2819 & GB1589 and specially used for the needs of frequent move or field power supply.   The output range is from 20kva to 625kva 2) Trailer mobile power station is divided into single axial and biaxial four wheels structure according to output range. Spring damping and dual-brake devices ensure the safety while moving.   3) Waterproof and soundproof canopy with maintenance doors and observation windows   4) Be convenient to drag use with Battery, 4-hour fuel tank and muffler integration      The choices of generator   1) Uesd for  frequent move or field power supply 2) single axial and biaxial four wheels structure 3) Spring damping and dual-brake devices ensure the safty while moving. 4) Wateproof and soundproof canopy with maintenance doors and observation windows. 5) Be convenient to drag use with Battery, 4-hour fuel tank and muffler integration. 6) Engine ♣ brand: Cummins,Perkins. Volvo.etc ♣ The output range s from 20KVAto 625KVA ♣ Machinery or electronic governing ♣ Electric motor starting system 7) Alternator: ♣ Brand: Stamford,LeroySomer, Marathon,Engga
♣ Rated voltage:    220/380V,230/400V,240/415V,120/240V ♣ Power factor: 0.8 ♣ Phase: 3 phase 4 pole
♣ Connection: Y or other type connection
♣ Excitation: Harmonic excitation or phase compound or brushless 8) Control Panel: ♣ Ammeter with selector switch
♣ Frequency meter
♣ Current transformers
♣ Instrument fuses duly wired and ferruled
♣ Mcb of suitable rateing with overload and short circuit protection
♣ With AMF control panel or with ATS( automatic transfer system)
♣ With ISO9000 certificate 9) Accesories:
♣ Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, standard tools kit, operation manual and document.
♣ Optional accessories: engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
