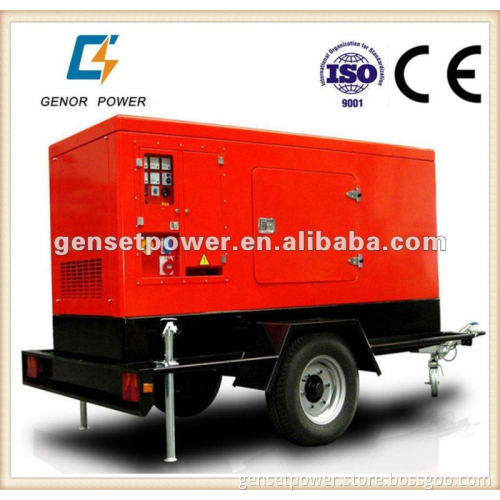

Globally Servic ! 200kva Trailer Soundproof Diesel Generator

Specifications 200kva Trailer Soundproof Diesel Generator

-Prime Power :200KVA

-Electronic Governor

-One Year Warranty

-Globally Servic

    200kva Trailer Soundproof Diesel Generator         General Features of Diesel Generator Set                                      *Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines   *Radiator 40°C max, fans are driven by belt, with safety guard   *12//24V DC start motor and storage battery   *Brushless, self-excited, IP22/23, insulation H alternator   *Absorber to reduce vibration   *Dry type air filter, fuel filter, oil filter   *Main line circuit breaker   *Control system: Key start control panel as standard, digital auto start or ATS system is optional    *8 hours operation base fuel tank   *High efficient muffler to reduce noise   *Ripple flex exhaust pipe, exhaust siphon and flange etc.   *Genset type: open type or soundproof/silent type, or trailer type   * Maintenance and operation manual, quality certificate, etc.    *Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%   and all protection function(over speed stop, high water temperature, low oil pressure, battery   charging fail, emergency stop)   *Certificate: ISO9001:2000, CE (ESC/070119), BV   Specifications of 200kva Cummins genset

Brand:	GENOR
Model:	GNRC200
Prime Power:	160kw/200kva
Standby Power:	176kw/220kva
Frequency:	50Hz/60Hz
Voltage:	220/380V(ajustable)
Rated Currency:	304amps
Fuel consumption:	45L/H
Cummins diesel Engine:
Brand:	Cummins
Model:	6CTAA8.3-G2
Displacement:	8.3L
Stamford lternator:
Brand:	Stamford(Marathon)
Model:	UCI274H(MP-160-4)
Protection:	IP23(IP21)

    control plane   Controller Brand: Deep Sea / Smartgen (Digital and intelligent) LED Screen and touch Buttons’ Main Functions, 1-      Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc. 2-      Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3-      Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc     Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.     Warranty policy Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
