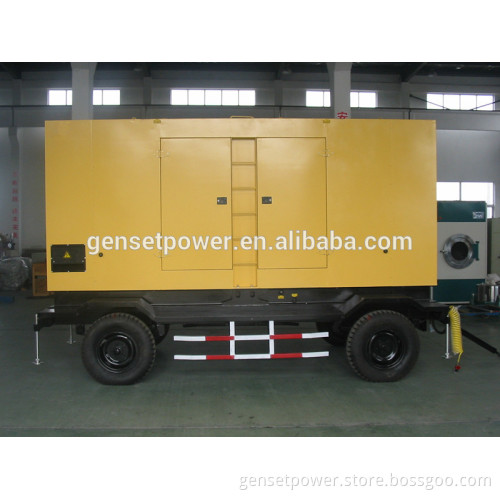

Diesel Engine 100kva Mobile Type Genset With Cummins Engine

Diesel Engine 100kva Mobile Type Genset With Cummins Engine         1),Main Specification of 100kva generator   a,3-Phase, 50Hz1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)  b,Composed Deutz diesel engine and Stamford or Leroy Somer alternator c,12V/24V DC start motor and storage battery d,Brushless, Self-excited, IP23, insulation class H alternator   e, 40°C radiator as standard, 50°C is optional f,Key start panel control system as standard, digital auto-start panel is optional g,8-hour operation base tank h,All generator sets are gone through rigorous testing  before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water   temperature, low oil pressure, battery charging fail, emergency stop)      2),Data of 100kva generator

Prime Power	80kw/100kva	Standby Power	88kw/110kva
Rated Speed	1500rpm	Output Frequency	50hz/60hz
Phase	3	Rated Voltage	400v
Engine Brand	Cummins/Deutz/Ricardo/Perkins	Alternator Brand	Stamford
Fuel Consumption	20L	Fuel Tank capacity	8 hours
Voltage Regulation Rate	≤±1%	Random Voltage        Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%

  3),Engine Specificatio of  100 kva Engine

Model	Cummins-6BT5.9-G2
Cooing  Method	Forced water cooling
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke

  4),Alternator Specification of 100 kva genset

Alternator Brand	Stamford,LeroySomer, Marathon,Engga
Exciter Type	Brushless, Self-excited
Rated Speed	1500/1800rpm
Rated Frequency	50/60hz
Phase	three or single
Rated Voltage	400V (Available with customer requirements)
Power	0.8
Voltage Adjust Range	≥5%
Protection Grade	IP23
Insulation Grade	H

  5),Control System, Our standard genset controller provides functions, a),Start/Stop controller b),Ampere meter c),Voltmeter and selector switch d),Frequency meter/ Water temperature gauge/Oil pressure gauge/Hour counter/Battery voltage meter e),Emergency stop pushbutton f),Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail g),Protection System: Over speed, High Engine Temperature, Low Oil Pressure,Emergency Stop, and the other protection function pre-setting h),AMF i),ATS.         Silent Type 100 kva genset
