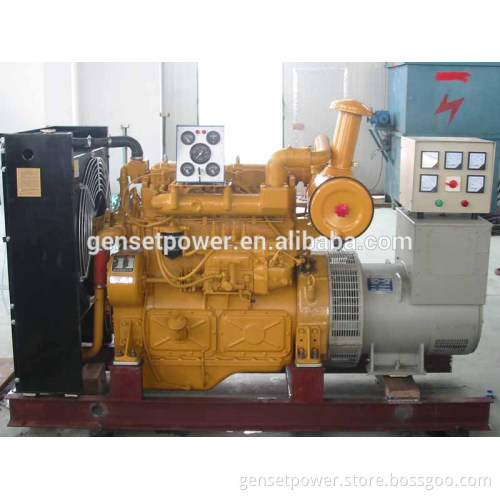

50kva to 700kva Diesel Engine Shangchai Power Generator

Specifications Shangchai Power

1.OEM Shangchai & Copy Stamford

2.Low Price

3. Easy Maintainability

4.One year warranty

50kva to 700kva Diesel Engine Shangchai Power Generator     1)Shangchai series diesel generator adopts the famous China-made engine Shangchai diesel engine and the world famous generator stamford. It has the advantage of low oil consumption, high reliability, high performance, low price etc has win a good reputation in the China market and overseas. The quality is the same as the famous brand cummins and perkins, but price is more competitive and attracting!
2)This sets are designed for using in towns, fishing ports, high buildings, railways, sites, ships etc as an electric power source or as reserved power for using on emergent case.
3)The main technical data of GF series all meet the national standard of GB/T2820-1997, this item work out specially for the industrial using diesel generator sets.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRS-55	40	50	44	55	4135D	≤226	4	8	135*140
GNRS-69	50	63	55	69	4135D-1	≤226	4	8	135*140
GNRS-88	64	80	71	88	4135AD	≤226	4	8.6	135*150
GNRS-104	75	94	83	104	4135AZD-1	≤221	4	8.6	135*150
GNRS-124	90	113	99	124	4135AZD	≤221	4	8.6	135*150
GNRS-138	100	125	110	138	4135AZD-2	≤221	4	8.6	135*150
GNRS-165	120	150	132	165	6135JZD	≤221	6	12.9	135*140
GNRS-235	150	188	165	235	6135AZD-1	≤221	6	12.9	135*150
GNRS-275	200	250	220	275	G128ZLD	≤218	6	12.9	135*150
GNRS-344	250	313	275	344	G128ZLD1	≤218	6	25.8	135*150
GNRS-385	280	350	308	385	12V135JZD	≤218	12	25.8	135*150
GNRS-413	300	375	330	413	G128ZLD11	≤218	6	26.8	135*150
GNRS-440	320	400	352	440	12V135AZD	≤218	12	26.8	135*150
GNRS-481	350	438	385	481	12V135AZLD	≤216	12	26.8	135*150
GNRS-550	400	500	440	550	12V135BZLD	≤216	12	26.9	135*150
GNRS-619	450	563	495	619	12V135BZLD2	≤216	12	26.9	135*150
GNRS-688	500	625	550	688	12V135BZLD1	≤216	12	26.9	135*150
GNRS-756	550	700	605	756	NT271LW53	≤216	12	26.9	138*150

    Engine Features:   1. china shangchai engine 50kva to 700kva 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner   Alternator Features:   1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof   Control Panel:   Brand: Smartgen, Deepsea,ComAp Start or Stop Generator set manually/ Automatically. Generator over/under frequency protection Open controller output can be defined as Pre-heat/Idle output . Generator over/under/unbalance voltage Protection . High Coolant temperature protection Over speed protection Low Oil pressure protection Over current protection Over load protection Note: indicate this function depend on the set points of the controller    Accessories   1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.   Our Factory
