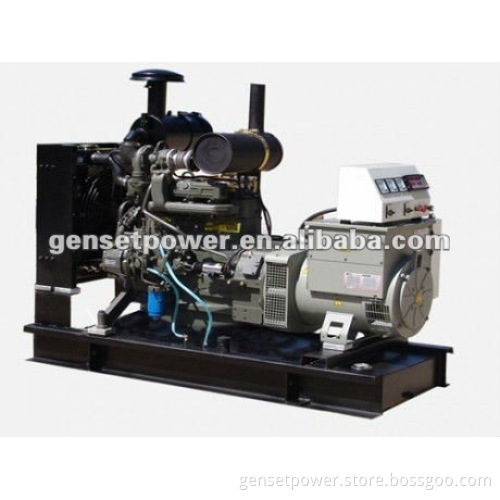

30kva small power china Weichai Diesel generator

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Specifications 1. Good quality

2. Competitive price

3. with small power

30kva small power Weichai Diesel Genset
Genset Model	GNRM-30
Prime Power	30KVA
Rated Voltage	400/230V
Rated Current	50A
Frequency	50Hz
Power Factor	0.8lagging
Dimension(LWH)(mm)	17007201080
Genset Weight(kg)	660
Diesel Engine
Brand	Weichai
Model	495D
Number of Cylinders	4
Rated Speed	1500rpm
Aspiration	Turbocharged air-air cooled
Bore*Stroke(mm)	95*115
Standby Power	132
Cylinder Arrangement	Vertical in-line
Speed Governor	Electrical
Cooling System	Water-cooled
Displacement	3.26L
Compression Ratio	17
Total Oil Capacity	13L
Oil consumption rate(g/kw.h)	0.4
Speed Adjustment Mode	EFC speedgoverning
Alternator
brand	Stamford,LeroySomer, Marathon,Engga
Excitation Mode	Brushless and self-encouragement
Efficiency	95%
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Protection Grade	IP23
Insulation Class	H
Overload	(PRP)110% load can run 1h
Telephone Influence Factor (TIF)	≤50
Automatic voltage regulator (AVR)	D203,Buffering function with a sudden load increase
